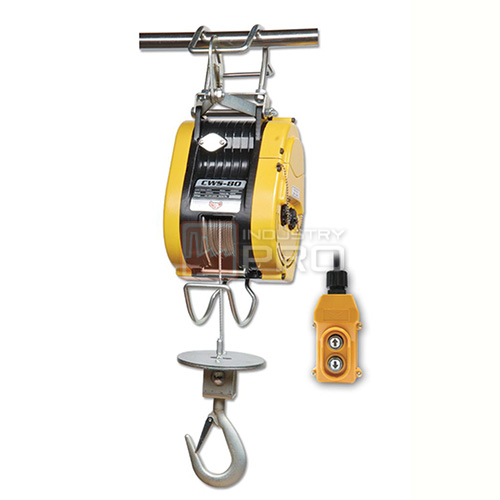

กว้านสลิงไฟฟ้า COME UP รุ่น CWS Serie

กว้านสลิงไฟฟ้า AC WINCH COME UP CWS Series

  • Lightweight and compact design
    Allows easy installation
  • Upper hoisting limit switch
    When rope touches the limit arm, hoisting is automatically stopped
  • Lower hoisting limit switch
    Sensor arm automatically stops motor if the wire rope is under-wound
  • Dynamic and mechanical ratched brake
    Single ratchet pawl brake provides instant and safe braking
  • Can operate on standard domestic power supply
  • Wire rope comes with a safety-latch weight hook
  • Emergency stop function switch is available upon request

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP รุ่น CWS Series

Specifications COME UPCWS-80 COME UPCWS-160 COME UPCWS-230 COME UP CWS-300
Lifting capacity 80 kg at wire rope top layer 160 kg at wire rope top layer 230 kg at wire rope top layer 300 kg at wire rope top layer
Lifting speed 18 – 30 m/min 14 – 22 m/min 9 – 14 m/min 9 – 13 m/min
Motor rating IP44 1 phase, 110V : 0.8 kw x 8 A series wound 1 phase, 110V : 1.2 kw x 12 A series wound 1 phase, 110V : 1.2 kw x 12 A series wound 1 phase, 220-240V: 1.5 kw x 7.5 A  weries wound
 1 phase, 220-240V: 0.8 kw x 4 A  weries wound 1 phase, 220-240V: 1.2 kw x 6 A  series wound 1 phase, 220-240V: 1.2 kw x 6 A  series wound
Gear ratio 92:1 192:1 272:1 270:1
Maximum lifting height 23 m 30 m 24 m 24 m
Braking methods for motor: Electromagnetic for motor: Electromagnetic for motor: Electromagnetic for motor: Electromagnetic
for gear: Single mechanical ratchet for gear: Double mechanical ratchets for gear: Double mechanical ratchets for gear: Double mechanical ratchets
Wire rope 4 mm x 24 m 4.8 mm x 31 m 5 mm x 25 m 4.8 mm x 25 m
Drum length 46 mm 60 mm 60 mm 60 mm
Drum dia. 70 mm 90 mm 90 mm 94 mm
Drum flange dia. 158 mm 170 mm 170 mm 170 mm
Net weight, kg 9 kg 14 kg 15 kg 17 kg
Gross weight 18 kg 25 kg 26 kg  28 kg
Box dimension, (L x D x H) 355 x 355 x 270 mm 425 x 365 x 300 mm 425 x 365 x 300 mm 425 x 365 x 300 mm
