ปั๊มน้ำหลายใบพัด CNP รุ่น CDL/CDLF Series

CDL CDLF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.

(1 customer review)

ปั๊มน้ำหลายใบพัด CNP รุ่น CDL/CDLF Series

The CNP vertical multistage pumps offer exceptional quality at unbeatable prices. The CDLF range feature all stainless steel construction and the CDL range incorporate conventional cast iron bases. Applications include water distribution and pressurisation, boiler feed, irrigation and water treatment.

  • Large range of models available from stock
  • In most cases, it will cost less to fit a complete new pump and motor than to overhaul an existing pump.
  • Interchangeable with other leading makes
  • Standard frame IE2, IP55 class F motors

PUMP

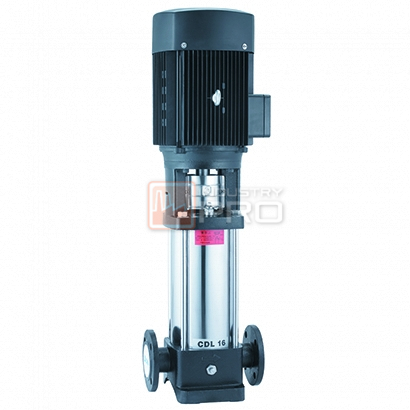

CDL CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pres sure-resistant cylinder and flow passage components are fixed between pump head and inlet &outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to ellectively prevent it from dry-running, out-of-phase and overload.

Motor

Full-enclosed air-blast two-pole standard motor

Protection class: IP55

Insulation class: F

Standard voltage:50Hz:

1 x 220-230/240V

3 x 200-220/346-380V

3 x 220-240/380-415V

3 x 380-415V

Application ปั๊มน้ำหลายใบพัด CNP รุ่น CDL/CDLF Series

  • Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings
  • Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
  • Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
  • Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, sepurator, swimming pool.
  • lrrigation: Farmland irrigation, spray irrigation, dripping irrigation

Operation conditions

  • Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
  • Liquid temperature:

Normal temperature type: -15C-+70C, Hot water type: -15 – +120C

  • Ambient temperature: up to +40 C
  • Altitude up to 1000 m.

SPECIFICATIONS

Technical Data
Rated flow 0.4-110m³/h
Max head 305m
Liquid temperature -15°C~+120°C
Standard voltage 220V / 380V
Material SS304 / SS316 / Cast Iron
