At a glance
– SWL range 1 t – 10 t.
– Hook positioned beside the crane girder.
– Optimised highest hook position.
– Allows building heights to be reduced.
The side-mounted hoist type S is characterised by the hook being positioned beside the crane girder. Thus an optimised highest hook position is achieved in the SWL range of 1 t to 10 t. The optimised hook position is not only an advantage in existing buildings. When designing new factory buildings the side-mounted hoist type S can be employed to reduce the total investment costs: it is possible, for example, to design cranes with spans of up to 35 metres or more as single girder cranes. Compared with a single-girder crane using a monorail hoist type E the building height can be reduced which will result in a lower cost volume. Compared with a double-girder crane of about the same height, the loads on the crane track and the building are significantly lower which is often another cost advantage.
At a glance
– SWL range 1 t – 10 t.
– Hook positioned beside the crane girder.
– Optimised highest hook position.
– Allows building heights to be reduced.

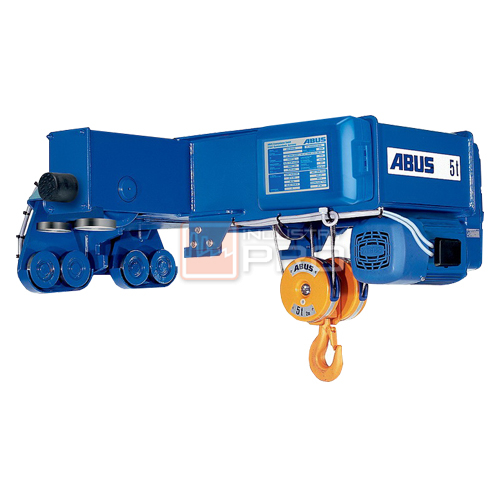

Type S-side-mounted hoist
With its optimized hook height, this hoist, which can be used on crane bridges with a span of up to 35 m or more, has advantages over other types in terms of investment return.
| Model | Reeving | Load cap. (t) | Hook path (m) | C (mm) | H (mm) | ||
| ABUS GM 800 | 4/1 | 3.2 | 6 | 9 | – | 343 | 238 |
| ABUS GM 1000 | 4/1 | 5.0 | 6 | 9 | – | 420 | 278 |
| ABUS GM 2000 | 4/1 | 6.3 | 6 | 9 | – | 440 | 280 |
| ABUS GM 3000 | 2/1 | 5.0 | 12 | 20 | – | 700 | 280 |
| 4/1 | 10.0 | 6 | 10 | 15 | 555 | 340 | |
