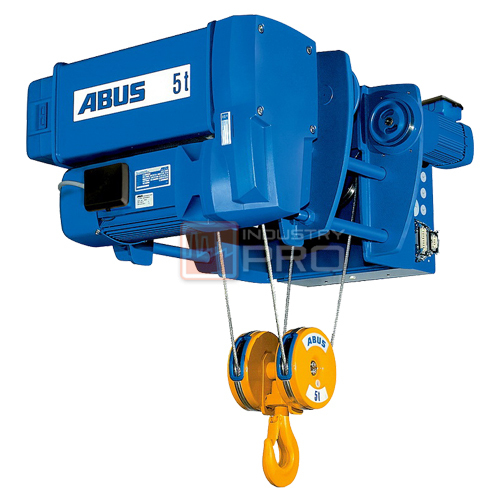

TYPE E – MONORAIL HOIST
The type E monorail hoist is our most frequently ordered hoist in the lower Safe Working Load range between 1 t and 16 t. These hoists tend to be the most economic choice for many standard applications of material flow. The compact design of the type E wire rope hoist offers favourable dimensions. The hoists feature two direct drive cross travel motors. The cross travel trolley is adjustable to suit various flange widths.
At a glance
– SWL range 1 t – 16 t
– Compact design.
– Two direct drive cross travel motors.
– Cross travel trolley adjustable to suit various flange widths.
Type E-monorail hoist
A compact designed monorail hoist with low headroom dimensions and two diract drive cross travel motors. The cross travel trolley is adjustable to suit various flange widths. these most cost effective and frequently ordered hoists have a load range from 1t to 16t SWL.
Model | Reeving | Load cap. (t) | Hook path (m) | C (mm) | H (mm) | ||
ABUS GM800 | 4/1 | 3.2 | 6 | 9 | – | 400 | 176 |
ABUS GM1000 | 2/1 | 2.5 | 12 | 18 | 24 | 657 | 196 |
4/1 | 5.0 | 6 | 9 | – | 500 | 196 | |
ABUS GM2000 | 2/1 | 3.2 | 12 | 18 | 24 | 580 | 213 |
4/1 | 6.3 | 6 | 9 | – | 500 | 213 | |
ABUS GM3000 | 2/1 | 6.3 | 12 | 20 | 30 | 665 | 251 |
4/1 | 10.0 | 6 | 10 | 15 | 580 | 251 | |
4/1 | 12.5 | 6 | 10 | – | 580 | 251 | |
ABUS GM5000 | 2/1 | 10.0 | 12 | 20 | 30 | 830 | 273 |
4/1 | 16.0 | 6 | 10 | – | 825 | 273 | |
ABUS GM6000 | 2/1 | 10.0 | 12 | 20 | – | 830 | 293 |
2/1 | 12.5 | 12 | – | – | 830 | 293 |
