The monorail hoist with twin trolleys type U is used for high load capacities and long hook paths. The SWL range extends between 6.3 t and 25 t. The cross travel trolleys feature direct drives without exposed reduction gearing. This lower flange trolley is fitted with 8 wheels for better load distribution. Thus ordinary rolled section beams can be used for monorail track applications. Cranes with higher load capacities yet smaller spans can be designed as single-girder cranes when using the hoist type S. Advantages as to the total investment can be achieved in comparison to the double-girder crane.
At a glance
– SWL range 6.3 t – 25 t.
– Cross travel trolley with direct drive.
– No exposed reduction gearing.
– Load is distributed over 8 wheels.

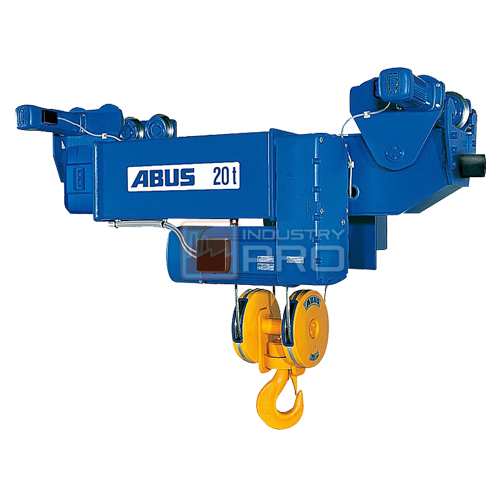

Type U-monorail hoist with twin trolleys
A monorail hoist with twin trolleys for high load capacities and long hook paths. Cross travel trolley designed for direct drive without exposed reduction gearing. As the load is distributed over eight wheels, ordinary rolled section beams can be used for monorail track applications. With short spans, even high-load cranes can be operated on ordinary rolled section beams using this hoist. Load capacity range: 6.3t to 25t.
| Model | Reeving | Load cap. (t) | Hook path (m) | C (mm) | H (mm) | |||
| ABUS GM 5000 | 4/1 | 20.0 | 6 | 10 | 15 | 18.5 | 1132 | 180 |
| ABUS GM 6000 | 2/1 | 12.5 | 12 | 20 | 30 | 37 | 1256 | 180 |
| 4/1 | 25 | 6 | 10 | 15 | 18.5 | 1241 | 180 | |
| ABUS GM7000 | 2/1 | 20.0 | 16 | 30 | 45 | – | 1615 | 180 |
