TYPE Z – TWIN BARREL CRAB UNIT

The twin barrel crab unit type Z is our standard wire rope hoist for heavy duty transport applications. The Safe Working Load range for type Z is between 8 t and 120 t. The articulated end carriage joints ensure positive contact of all four wheels with the track. The hoist trolley of this twin barrel crab unit features two direct drive cross travel motors. These come as epicyclic or flat geared motors depending on the diameter of the wheels. In addition, maintenance platforms can be fitted to this crab unit making for easier and safer service and maintenance – with walkable platforms being an option also. Should the available clearance above the crab unit be restricted, a stooled-down version (type ZA) is available upon request, a design characterised by ultra-low headroom that adapts to the building contours in an optimal way.



At a glance

– SWL range 8 t – 120 t.

– Compact design.

– Articulated end carriage joints.

– Two direct drive cross travel motors.

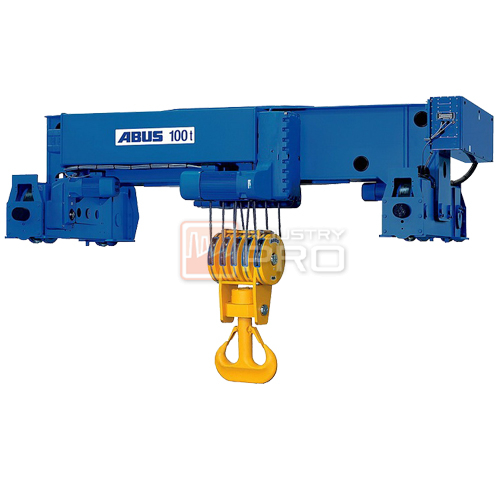

Type Z-twin barrel crab unit

A compact designed crab unit with twin barrels and articulated end carriage joints ensuring positive contact of all four wheels with the track, two direct drive cross travel motors. Load capacity range: 8t to 120 t.



SPECIFICATIONS

Model Reeving Load cap. (t) Hook path (m) C (mm) H (mm)
ABUS GM 5000 4/2 20.0 12 20 30 37 413 985
ABUS GM 6000 8/2 40.0 6 10 15 18.5 635 1030
4/2 25.0 12 20 30 37 419 1008
ABUS GM7000 8/2 50.0 6 10 15 18.5 643 1080
4/2 40.0 16 30 45 473 1107
6/2 63.0 10.6 20 30 36 897 1218
8/2 80.0 5 15 22.5 27.5 915 1275
10/2 100.0 12 18 22 960 1265
12/2 120.0 15 1400 1200
