มอเตอร์ไฟฟ้า ABB รุ่น M2QA Series(IE1)

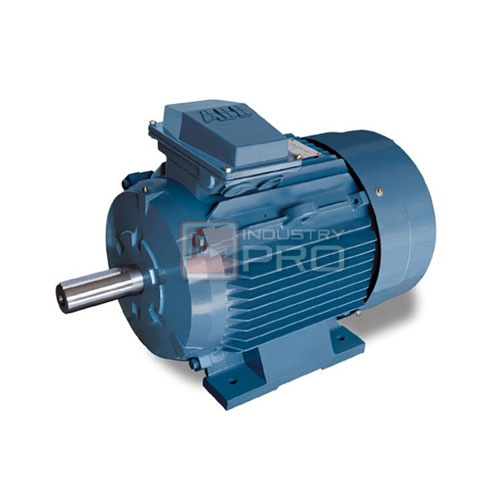

ABB MOTOR M2QA Series(IE1)

High efficiency

The output power 1.1kW-90kW 2P and 4P, in S1 duty, M2QA motors

are among the class 2 of CEMEP-EU standard, saving energy and

operating costs.

Voltage ranges of extra versatility

A wide range of voltages can be up to max. 690 V for 50 Hz and 60 Hz available.

Reliable windings

To ensure long lifetime, the windings are made of the latest available

materials in class F protection and temperature rise limited to class B(80k) in standard motors.

Bearings with high load capacity

All motors are provided with deep-groove ball bearings as standard and they are designed for long lifetime is extended. Cast iron motors in sizes 71-225 are greased for life and motors in sizes 250-355 have a regreasing device as a standard.

Strong corrosion protection

The motors are made to withstand aggressive environment as standard and they are designed for long lifetime. For motors with regreasing, they have strong and effective protection against corrosion.

Low noise level

An important objective in our design work is to minimize the noise level. And we have been successful.

Additional windings protection

Fix thermistors(PTC), them-switches, anti condensation heaters on request.
