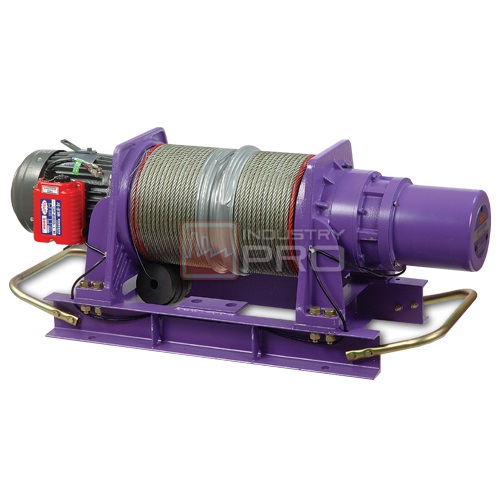

กว้านสลิงไฟฟ้า COME UP รุ่น CEP Series

กว้านสลิงไฟฟ้า AC WINCH COME UP Electric Grooved Winch CEP Series

CEP-500(S)

SPECIFICATIONS

Model number Single phase COME UP CEP-500S- M
Three phase COME UPCEP-500- M
Double fall load kg 500
Double fall speed M/min 8.3
Motor kw x P 0.75 x 4
Power Source 1ø 50Hz 220/230/240V
3ø 50Hz 380/400/415V
Lifting height M 5 8
Wire rope ø mm x M 8 x 16 8 x 22
Dimension A mm 265 365
B mm 380 480
C mm 770 870
Net weight kg 68 73
Gross weight kg 86 94

CEP-1000(S)

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP รุ่น CEP Series

Model number Single phase COME UPCEP-1000S- M
Three phase COME UPCEP-1000- M
Double fall load kg 1,000
Double fall speed M/min 7.5
Motor kw x P 1.5 x 4
Power Source 1ø 50Hz 220/230/240V
3ø 50Hz 380/400/415V
Lifting height M 5 8 14
Wire rope ø mm x M 8 x 16 8 x 22 8 x 34
Dimension A mm 470 670 1070
B mm 600 800 1000
C mm 1150 1350 1550
Net weight kg 111 126 156
Gross weight kg 151 166 196
