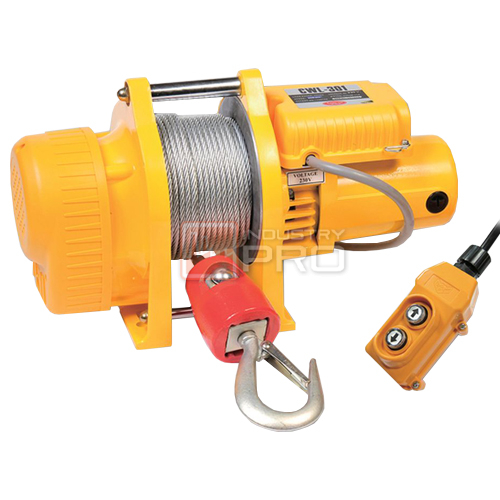

กว้านสลิงไฟฟ้า COME UP รุ่น CWL Series

กว้านสลิงไฟฟ้า AC WINCH Longer Rope Compact Winch CWL Series

  • Lightweight and compact design for easy installation
  • Double mechanical ratchets brake provide instant and safe braking
  • Operates on standard household power supply
  • Wire rope comes with a safety-latch weight hook
  • Enclosed drum flange prevents ropes becoming trapped between drum and support castings
  • Emergency stop function switch is available upon request
  • Best solution for wind energy turbines for efficient and economical operation at great heights

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP CWL Series

Specifications COME UP CWL-200L COME UPCWL-301L
Lifting capacity 200 kg at wire rope top layer  300 kg at wire rope top layer
Lifting speed 11 – 16 m/min 16 – 25 m/min
Motor rating IP44 1 phase, 110V: 1.2 kw x 12 A series wound 1 phase, 220-240V: 2.3 kw x 11 A series wound
1 phase, 220-240V: 1.5 kw x 7.5 A series wound
Gear ratio 240:1 110:1
Maximum lifting height 69 m 58 m
Braking methods for motor: Electromagnetic for motor: Electromagnetic
for gear: Double mechanical ratchets  for gear: Double mechanical ratchets
Wire rope 5 mm x 71 m 6 mm x 60 m
Drum length 147 mm 147 mm
Drum dia. 95 mm 95 mm
Drum flange dia. 190 mm 190 mm
Mounting bolts pattern 197 mm x 94 mm ; 207 mm x 135 mm 197 mm x 94 mm ; 207 mm x 135 mm
Net weight, kg (standard version) 33 kg 40 kg
Gross weight 35 kg 42 kg
Body dimension, (L x D x H) 407.5 x 210 x 270 mm 556 x 210 x 270 mm
Box dimension, (L x D x H) 545 x 395 x 350 mm 630 x 395 x 350 mm
