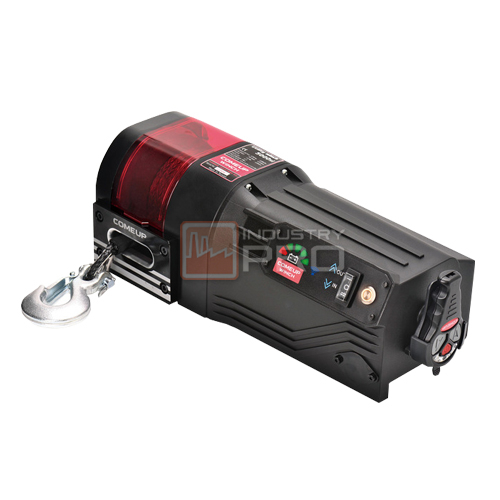

กว้านสลิงติดรถยนต์ COME UP Utility Duty Winch DV Series

กว้านสลิงติดรถยนต์ AUTOMOTIVE WINCH COME UP Utility Duty Winch DV Series

DV-2500i,DV-3500i,DV-4500i

  • Power in and power out
  • Sliding ramping clutch for rapid wire rope payout
  • Circuit breakers shut off winch to prevent overheating of motor
  • Weather-resistant plastic housing for extra durability
  • Dynamic and mechanical brake holds full load
  • Integrated contactor for complete protection of wirings
  • Compact and light weight allow a wide range of applications on trailers and boats

SPECIFICATIONS กว้านสลิงติดรถยนต์ COME UP Utility Duty Winch DV Series

Specifications COME UP DV-2500i COME UP DV-3500i COME UP DV-4500i
Part number PN 640333 (12V) / PN 640614 (24V) PN 641101 (12V) / PN 641371 (24V) PN 641656 (12V) / PN 642037 (24V)
Rated line pull 1,134 kg / 2,500 lb single line 1,588 kg / 3,500 lb single line 2,401 kg / 4,500 lb single line
Motor 600 w / 0.8 hp 12/24V permanent magnet 900 w / 1.2 hp 12/24V permanent magnet 1,200 w / 1.6 hp 12/24V permanent magnet
Gear train 3-stage planetary 170:1 3-stage planetary 170:1 3-stage planetary 170:1
Clutch (freespooling) Sliding ramping Sliding ramping  Sliding ramping
Brake (outside the drum)  Automatic load-holding mechanical brake Automatic load-holding mechanical brake Automatic load-holding mechanical brake
Drum size: 54 x 83 mm (2.1” x 3.3”) 54 x 83 mm (2.1” x 3.3”) 54 x 83 mm (2.1” x 3.3”)
Control Handheld pendant switch remote control Handheld pendant switch remote control Handheld pendant switch remote control
Rope type  Galvanized aircraft A7 x 19 Galvanized aircraft A7 x 19 Galvanized aircraft A7 x 19
Rope size 4.8 mm x 15.2 m (3/16” x 50’) 5.5 mm x 15.2 m (7/32” x 50’) 6.3 mm x 15.2 m (1/4” x 50’)
Mounting bolts pattern 86 x 93 mm (3.4” x 3.7”) 86 x 93 mm (3.4” x 3.7”) 86 x 93 mm (3.4” x 3.7”)
Winch weight (including rope) 13.5 kg / 29.7 lb 13.9 kg / 30.6 lb 14.2 kg / 31.2 lb
Gross weight 17.5 kg / 38.5 lb 17.9 kg / 39.4 lb 18.2 kg / 40 lb
Box dimension, (L x D x H) 470 x 280 x 200 mm (18.5″ x 11″ x 7.9″) 470 x 280 x 200 mm (18.5″ x 11″ x 7.9″) 470 x 280 x 200 mm (18.5″ x 11″ x 7.9″)
