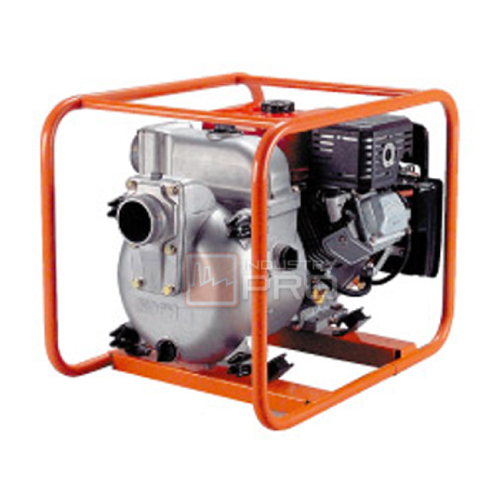

ปั๊มน้ำหอยโข่ง KOSHIN รุ่น KTH/KTM Series (Made in Japan) ปั๊มน้ำหอยโข่งแบบติดเครื่องยนต์ฮอนด้าและมิตซูบิชิ เป็นปั๊มน้ำขนาดใหญ่ทนทานต่อการใช้งานหนัก ออกแบบและผลิตมาสำหรับใช้ในงานก่อสร้างและวิศวกรรมโยธาโดยเฉพาะ ดูแลและถอดบำรุงรักษาได้ง่ายและรวดเร็ว มีขนาดกำลังสูงสุดตั้งแต่ 3.6 kW – 7.1 kW สามารถเชื่อมต่อกับท่อส่งน้ำตั้งแต่ขนาดท่อ 50 mm (2″) – 100 mm (4″)
| Model | KTH-50X | KTH-80X | KTH-100X | KTH-50G | KTM-80X | |
|---|---|---|---|---|---|---|
| Pump | Connection Dia | 50 mm (2″) | 80 mm (3″) | 100 mm (4″) | 50 mm (2″) | 80 mm (3″) |
| Connection Thread | Outer Pipe Thread BSP | |||||
| Total Head | 30 m (98 ft) | 27 m (89 ft) | 25 m (82 ft) | 28 m (92 ft) | 24 m (79 ft) | |
| Delivery Volume | 700 L/min (185 USG/min) | 1340 L/min (354 USG/min) | 1600 L/min (442 USG/min) | 700 L/min (185 USG/min) | 1300 L/min (343 USG/min) | |
| Max. Suction Head | 8 m (26 ft) | |||||
| Material for Mechanical Seal | SiC (Silicon Carbide) × SiC | |||||
| Material for Impeller | Hi-Chrome | |||||
| Material for Volute | Spheroidal Graphite Iron Castings | |||||
| Engine | Type | Forced Air-cooled 4-stroke Gasoline Engine | ||||
| Model | Honda GX160 | Honda GX240 | Honda GX340 | Mitsubishi GT600 | Mitsubishi GM291 | |
| Exhaust Volume | 163 cc | 270 cc | 337 cc | 181 cc | 296 cc | |
| Rated Output | 2.9 kW (4.0 PS) / 3600 rpm | 4.6 kW (6.3 PS) / 3600 rpm | 5.8 kW (7.9 PS) / 3600 rpm | 3.3 kW (4.5 PS) / 3600 rpm | 4.4 kW (6.0 PS) / 3600 rpm | |
| Max. Output | 3.6 kW (4.9 PS) / 3600 rpm | 5.9 kW (8.0 PS) / 3600 rpm | 7.1 kW (9.7 PS) / 3600 rpm | 4.4 kW (6.0 PS) / 4000 rpm | 5.9 kW (8.0 PS) / 4000 rpm | |
| Fuel | Automotive Unleaded Gasoline | |||||
| Fuel Tank Capacity | 3.1 L (0.82 USG) | 5.3 L (1.40 USG) | 6.1 L (1.61 USG) | 3.8 L (1.0 USG) | 6.0 L (1.58 USG) | |
| Continuous Oparating Time | Approx. 2.2 hrs | Approx. 2.5 hrs | Approx. 2 hrs | Approx. 3 hrs | ||
| Starting Method | Recoil Starter | |||||
| Standard Accessories | 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set | |||||
| Gross Weight | 51 kg (112 lbs) | 64 kg (141 lbs) | 86 kg (189 lbs) | 55 kg (121 lbs) | 68 kg (150 lbs) | |
| Dimensions LxWxH (mm) | 646 × 488 × 509 | 711 × 506 × 570 | 780 × 570 × 652 | 646 × 488 × 509 | 721 × 536 × 582 | |
| Packing Unit | 1 | |||||
