กว้านสลิงไฟฟ้า COME UP Powersports Winch Cub Series

กว้านสลิงไฟฟ้า COME UP Powersports Winch Cub Series

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP Powersports Winch Cub Series

Specifications COME UP Cub 2 COME UP Cub 2s COME UP Cub 3 COME UP Cub 3s
Part number PN 122012 PN 122112 PN 123561 PN 129300
Rated line pull 907 kg (2,000 lb) single line 907 kg (2,000 lb) single line 1,361 kg (3,000 lb) single line 1,361 kg (3,000 lb) single line
Motor 600 w / 0.8 hp 12V permanent magnet 600 w / 0.8 hp 12V permanent magnet 800 w / 1.0 hp 12V permanent magnet 800 w / 1.0 hp 12V permanent magnet
Gear train 3-stage planetary 103:1 3-stage planetary 103:1 3-stage planetary 138.5:1 3-stage planetary 138.5:1
Clutch (freespooling) Cam activated Cam activated Sliding pin and ring gear Sliding pin and ring gear
Brake Mechanical spring applied and dynamic brakes Mechanical spring applied and dynamic brakes Mechanical & dynamic Mechanical & dynamic
Winch construction Aluminum die cast drum and steel plate housings Aluminum die cast drum and steel plate housings Aluminum die cast housings and drum Aluminum die cast housings and drum
Drum size 38 x 75 mm (1.5” x 3”) 38 x 75 mm (1.5” x 3”) 55 x 75 mm (2.2” x 3”) 55 x 75 mm (2.2” x 3”)
Control Handlebar rocker switch Handlebar rocker switch Handlebar rocker switch Handlebar rocker switch
Rope type Galvanized aircraft A7 x 19 Synthetic rope Galvanized aircraft A7 x 19 Synthetic rope
Rope size 4 mm x 15.2 m (5/32” x 50’) 4 mm x 15.2 m (5/32” x 50’) 4.8 mm x 15.2 m (3/16” x 50’) 4.8 mm x 15.2 m (3/16” x 50’)
Mounting bolts pattern 76 x 124 mm (3” x 4.9”) 76 x 124 mm (3” x 4.9”) 76 x 124 mm (3” x 4.9”) 76 x 124 mm (3” x 4.9”)
Winch weight (including rope) 7.2 kg / 15.9 lb
Gross weight 10 kg / 22 lb 9 kg / 19.8 lb 12.5 kg / 27.6 lb 11.5 kg / 25.3 lb
Box dimension, (L x D x H) 296 x 223 x 140 mm (11.7″ x 8.8″ x 5.5″) 296 x 223 x 140 mm (11.7″ x 8.8″ x 5.5″) 349 x 331 x 144 mm (13.7″ x 13″ x 5.7″) 349 x 331 x 144 mm (13.7″ x 13″ x 5.7″)

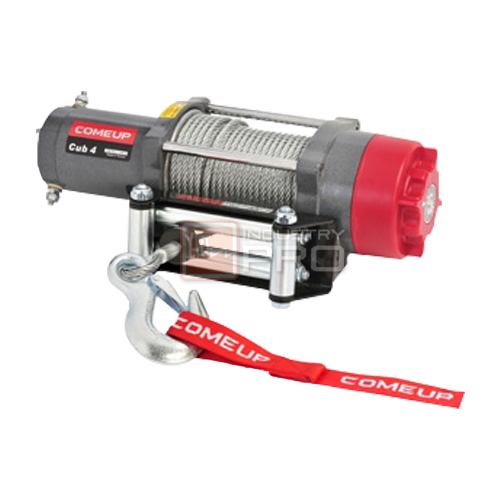

Specifications COME UP Cub 4 COME UP Cub 4s COME UP Cub 4s carry on
Part number PN 123920 PN 129410 PN 123930
Rated line pull 1,814 kg (4,000 lb) single line 1,814 kg (4,000 lb) single line 1,814 kg (4,000 lb) single line
Motor 800 w / 1.0 hp 12V permanent magnet 800 w / 1.0 hp 12V permanent magnet 800 w / 1.0 hp 12V permanent magnet
Gear train 3-stage planetary 191:1 3-stage planetary 191:1
Gear ratio 3-stage planetary 191:1
Clutch (freespooling) Sliding pin and ring gear Sliding pin and ring gear Sliding pin and ring gear
Brake Mechanical & dynamic Mechanical & dynamic Mechanical spring applied and permanent magnet motor dynamic brakes
Winch construction Aluminum die cast housings and drum Aluminum die cast housings and drum Aluminum die cast housings and drum
Drum size 55 x 119 mm (2.2” x 4.7”) 55 x 119 mm (2.2” x 4.7”)
Control Handlebar rocker switch Handlebar rocker switch Remote control w/3 m cord
Rope type Galvanized aircraft A7 x 19 Synthetic rope Synthetic rope
Rope size 5.5 mm x 15.2 m (7/32” x 50’) 5.5 mm x 15.2 m (7/32” x 50’) 5.5 mm x 15.2 m (7/32” x 50’)
Mounting bolts pattern 76 x 168 mm (3” x 6.6”) 76 x 168 mm (3” x 6.6”) 76 x 168 mm (3” x 6.6”)
Winch weight (including rope) 8.9 kg / 19.6 lb 8 kg / 17.6 lb 12.2 kg / 26.9 lb
Gross weight 13.1 kg / 28.9 lb 12 kg / 26.4 lb 19.1 kg / 42.1 lb
Box dimension, (L x D x H) 380 x 362 x 144 mm (15″ x 14.3″ x 5.7″) 380 x 362 x 144 mm (15″ x 14.3″ x 5.7″) 410 x 200 x 345 mm (16.1″ x 7.9″ x 13.6″)
