กว้านสลิงไฟฟ้า CHIYEAH รุ่น Solenoid type KIO Series

กว้านสลิงไฟฟ้า CHIYEAH รุ่น Solenoid type KIO Series

FEATURES

  • Lightweight and compact design for easy installation
  • Dynamic and mechanical brake provides instant and safe braking
  • Operates on standard household power supply
  • Comes complete with wire rope and hook
  • Enclosed drum flange prevents ropes becoming trapped between drum and support castings
  • Comes complete with 6 m pendant control
  • Comes complete with 4.5 m power lead and industrial plug

SPECIFICATIONS กว้านสลิงไฟฟ้า CHIYEAH รุ่น Solenoid type KIO Series

Model Lifting Load kg Speed m / min tor Output 110V kw x A Motor Type Braking Methods For motor Braking Methods For gear Maximum Lifting Height m Wire Rope Φ mm×m Drum Barrel Diameter Drum Flange Diameter Distance between Flanges Percentage Duty Cycle
CHIYEAH KIO-300S 300 Kg 16~25 2.3 X 11 series wound Electromagnetic brake Mechanical brake 29 6 x 30 93 mm 190 mm 97 mm 25% ED
CHIYEAH KIO-301S 300 Kg 16~25 2.3 X 11 series wound Electromagnetic brake Mechanical brake 39 7 x 40 93 mm 190 mm 97 mm 25% ED

Note:Above performance ratings are based on 50 Hz supply. (60 Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%)
1. All ratings are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation、to increase line pull by approximately 85%

PULLING LOAD CAPACITY FOR VARIOUS INCLINES in kg
Gradient%inclines / Angle in degrees Pulling capacity (kg)
Level Surface 1,500
10% / 60 800
20% / 110 600
40% / 250 400
60% / 310 325
80% / 390 270

A gradient of 10% is a rise of one meter in ten meters The pulling capacities are based on a free pulling load and 15% has been allowed for friction (specific applications will vary)

WARNING

Winches are not to be used for the moving of persons

WARRANTY

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase

OPTIONAL ACCESSORIES

‧Remote control K-61A assembly

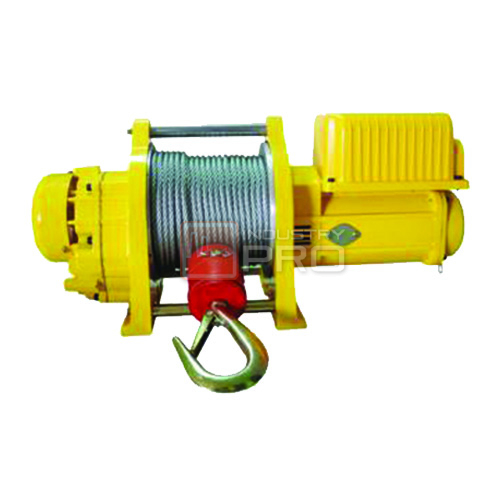

Compact Winch CHIYEAH KIO-300S

Model A B C D E F G H I
CHIYEAH KIO-300S 205 270 94 135 550 100 95 140 150

Compact Winch CHIYEAH KIO-301S

Model A B C D E F G H I
CHIYEAH KIO-301 205 270 94 135 550 100 95 140 150

SPECIFICATIONS

Model STANDARD ACCESSORIES PACKAGE
CHIYEAH KIO-300S        – 6 mm x 30 m wire rope
– Weight hook K-15
– Pendant Switch K61
– Switch cord 0.75 mm  x 3C X 20 m
– Power lead 3.5 mm  x 3C X 60 cm and industry plug
       – Winch Weight : 38 kg
– Gross Weight : 40 kg
– Box Dimension : 515 x 395 x 350 mm
CHIYEAH KIO-301S        – 5 mm x 46 m wire rope
– Weight hook K-15
– Pendant Switch K61
– Switch cord 0.75 mm  x 3C X 20 m
– Power lead 3.5 mm  x 3C X 60 cm and industry plug
       – Winch Weight : 30 kg
– Gross Weight : 36 kg
– Box Dimension : 515 x 395 x 350 mm
