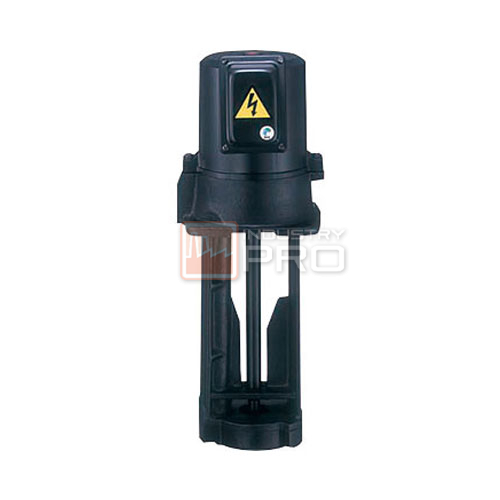

ปั๊มน้ำหล่อเย็นชนิดจุ่มน้ำ ยี่ห้อ TERAL VKP- type ปั๊มใบพัดเดี่ยว อัตราการส่งต่ำ อัตราไหลระดับต่ำ – กลาง
| Model | Type | TERAL VKP035L | TERAL VKP045A(L) | TERAL VKP055A | TERAL VKP065A | TERAL VKP075A(AH)(AK) | TERAL VKP075J | TERAL VKP085A(AF)(AK) | TERAL VKP085J | TERAL VKP095A(AF)(AK) | TERAL VKP095J | TERAL VKP115A |
| Nominal output | (W) | 20 | 40 | 60 | 100 | 180 | 180 | 250 | 250 | 400 | 400 | 750 |
| Rated voltage | (V) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Frequency | (Hz) | 50 | ||||||||||
| Rated current | (A) | 0.18 | 0.32 | 0.4 | 0.55 | 0.85 | 0.85 | 1.2 | 1.2 | 2.4 | 2.4 | 3.3 |
| Discharge rate | (ℓ/min) | 13 | 19 | 20 | 45 | 75 | 75 | 110 | 110 | 140 | 155 | 165 |
| Total head | (m) | 2 | 1.5 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 7 |
| Max. viscosity allowed | (mm2/s) | 300 | ||||||||||
| Outlet | (Rp) | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 2 |
| Paint color | Munsell N1 | |||||||||||
| Standard | IEC60034-1 CE approved | |||||||||||
| Degree of protection | IP23 | IP54 | ||||||||||
