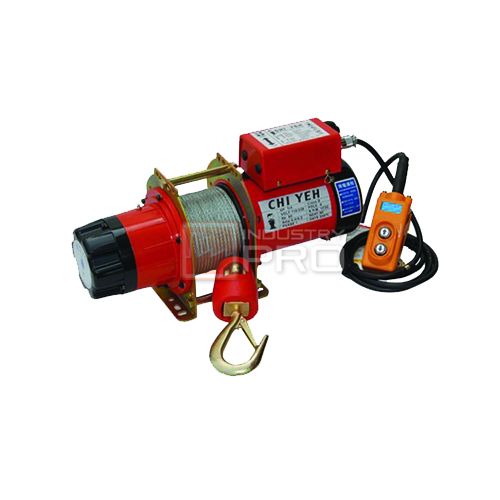

กว้านสลิงไฟฟ้า CHIYEAH รุ่น GG-150~500kg-Series

กว้านสลิงไฟฟ้า CHIYEAH รุ่น GG-150~500kg-Series

FEATURES

  • Positive retention of wire rope on to drum
  • Electromagnetic spring-applied fail safe brake
  • Heavy duty high efficiency ball bearing on all running surfaces
  • Planetary gearing for maximum mechanical efficiency
  • Enclosed drum flanges
  • Quiet running
  • Heavy duty IP65 waterproof switch K213A emergency stop as an option

SPECIFICATIONS

Model Lifting Capacity (top layer) First Layer Speed Top Layer Speed Motor Rating IP44 Maximum Lifting Height Wire Rope Drum Barrel Diamete Drum Flange Dia Distance between Flanges
CHIYEAH GG-56-500 500 kg 18 m/min 25 m/min 2.0 HP x 4 poles 29 m 8 mm x 30 m 91 mm 188 mm 203 mm
CHIYEAH GG-56-500A 500 kg 18 m/min 25 m/min 2.0 HP x 4 poles 49 m 8 mm x 30 m 91 mm 188 mm 203 mm
CHIYEAH GG-56-500B 500 kg 18 m/min 25 m/min 2.0 HP x 4 poles 49 m 8 mm x 30 m 91 mm 188 mm 203 mm
CHIYEAH GG150 150 kg 12 m/min 18 m/min 0.5 HP x 4 poles 24 m 5 mm x 25 m
CHIYEAH GG200 200 kg 12 m/min 18 m/min 0.75 HP x 4 poles 29 m 6 mm x 30 m 94 mm 154 mm 188 mm
CHIYEAH GG250 250 kg 12 m/min 18 m/min 1.0 HP x 4 poles 29 m 6 mm x 30 m 94 mm 154 mm 188 mm
CHIYEAH GG300 300 kg 12 m/min 18 m/min 1.5 HP x 4 poles 44 m 6 mm x 45 m 74 mm 154 mm 153 mm
CHIYEAH GG301 300 kg 12 m/min 18 m/min 1.5 HP x 4 poles 29m 6 mm x 45 m 74 mm 154 mm 153 mm
CHIYEAH GG302 300 kg 12 m/min 18 m/min 1.5 HP x 4 poles 29 m 6 mm x 45 m 74 mm 154 mm 153 mm

Above performance ratings are based on 50 Hz supply. (60 Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%)
1. All ratings are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation、to increase line pull by approximately 85%

PULLING LOAD CAPACITY FOR VARIOUS INCLINES in kg
Gradient%inclines / Angle in degrees Pulling capacity (kg)
Level Surface 1,850
10% / 60 1,000
20% / 110 750
40% / 250 500
60% / 310 400
80% / 390 300

A gradient of 10% is a rise of one meter in ten meters The pulling capacities are based on a free pulling load and 15% has been allowed for friction (specific applications will vary)

WARNING

Winches are not to be used for the moving of persons

WARRANTY

ach new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase

OPTIONAL ACCESSORIES

‧ Pendant control K213A

Model STANDARD ACCESSORIES PACKAGE
CHIYEAH GG-56-500        – 8 mm x 30 m
– Weight hook K-17
– Pendant control K213
       – Winch Weight : 68 kg
– Gross Weight : 72 kg
– Box Dimension : 730 x 290 x305 mm
CHIYEAH GG-56-500A        – 8 mm x 50 m
– Weight hook K-17
– Pendant control K213
       – Winch Weight : 70 kg
– Gross Weight : 75 kg
– Box Dimension : 730 x 290 x305 mm
CHIYEAH GG-56-500B        – 8 mm x 50 m
– Weight hook K-17
– Pendant control K213
       – Winch Weight : 70 kg
– Gross Weight : 75 kg
– Box Dimension : 730 x 290 x305 mm
CHIYEAH GG150        – 5 mm x 25 m wire rope
– Weight hook K-8
– Pendant control K213
       – Winch Weight : 23 kg
– Gross Weight : 24.5 kg
– Box Dimension : 410 x 255 x240 mm
CHIYEAH GG200        – 6 mm x 30 m
– Weight hook K-15
– Box Dimension : 600 x 240 x300 mm
       – Winch Weight : 31 kg
– Gross Weight : 33 kg
– Box Dimension : 600 x 240 x300 mm
CHIYEAH GG250        – 6 mm x 30 m
– Weight hook K-15
– Pendant control K213
       – Winch Weight : 31 kg
– Gross Weight : 34 kg
– Box Dimension : 600 x 240 x300 mm
CHIYEAH GG300        – 6 mm x 30 m
– Weight hook K-15
– Pendant control K213
       – Winch Weight : 35 kg
– Gross Weight : 38 kg
– Box Dimension : 630 x 240 x300 mm
CHIYEAH GG301        – 7 mm x 30 m
– Weight hook K-15
– Pendant control K213
       – Winch Weight : 35 kg
– Gross Weight : 38 kg
– Box Dimension : 630 x 240 x300 mm
CHIYEAH GG302        – 6 mm x 30 m
– Weight hook K-15
– Pendant control K213
       – Winch Weight : 33 kg
– Gross Weight : 35 kg
– Box Dimension : 630 x 240 x300 mm
