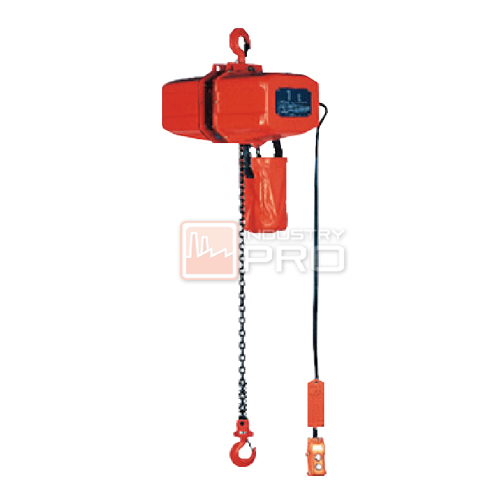

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น EC4 Series

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI EC4 Series



Suspension Type Electric Chain Hoist (3-phase 200 V)

  • This hook hoist is operated by a two-button (up/down) switch.
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 5 m. Please consult us for cables with different lengths.



SPECIFICATIONS

tem no. Rated load Standard lift (m) Hoisting speed m/sec (m/min) Motor output (kW) Rated time (min) Load chain Power cable length (m) Push-button switch cord length S (m)
50Hz 60Hz 50Hz 60Hz Diameter No. of falls
EC40025 250kg 3 0.145 0.172 0.4 0.5 30 6.3 1 5 2.6
6 -8.7 -10.3 5.6
EC40050 500kg 3 0.143 0.168 0.9 1.1 2.6
6 -8.6 -10.1 5.6
ECJ40100 1tw 3 0.072 0.083 2 2.6
6 -4.3 -5 5.6
EC40100 1t 3 0.093 0.11 1.1 1.3 7.1 1 2.6
6 -5.6 -6.6 5.6
ECJ40200 2t 3 0.047 0.055 2 2.6
6 -2.8 -3.3 5.6

Notes:

  • Figures marked with an asterisk (*) are based on the standard lift.
  • Specifications are subject to change for improvements without notice.
