รอกโซ่ไฟฟ้า NICHI รุ่น ECCE4

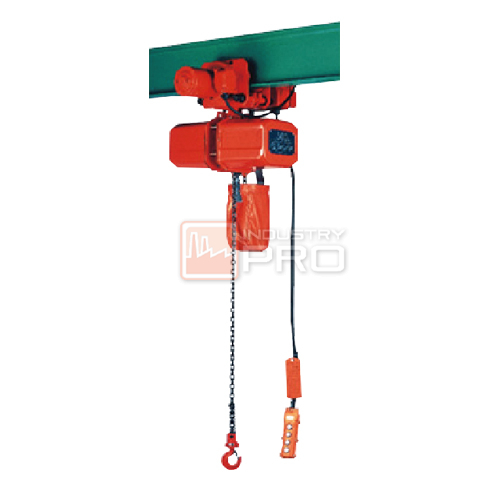

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECCE4



Motorized Trolley Type Single-Phase Electric Chain Hoist (1-phase 100V)

  • This single-phase electric chain hoist with a singe-phase electric trolley runs on 100V home po< or in a traversing direction via a four-button switch.
  • The rated load of 1 tw is applicable to a two-chain configuration.
  • The length of a standard power cable is 1 m. Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing Traversing rail width b (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm)
Speed m/sec (m/min) Motor output (kW) Rated time (min)
50Hz 60Hz
ECCE40030 300kg 3 0.167 0.2 0.09 15 75 1 1 3 530
ECCE40050 500kg (10) (12) 100 530
ECCJE40100 1tw 125 660

Notes:

  • Figures marked with an asterisk (*) are based on the standard lift.
  • Specifications are subject to change for improvements without notice.
  • Please refer to the specifications for the ECC4 for items related to hoisting.
