รอกโซ่ไฟฟ้า NICHI รุ่น ECCG4

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECCG4

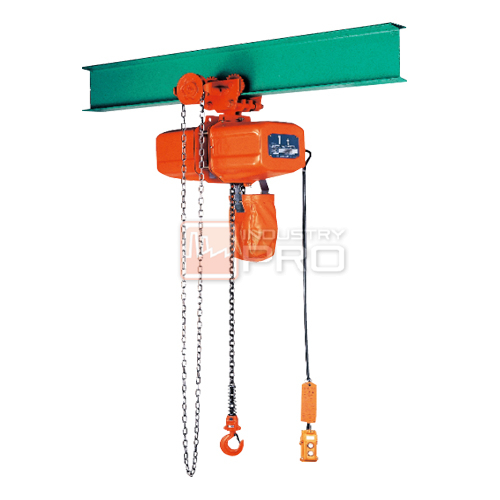

Geared Trolley Type Single-Phase Electric Chain Hoist (1-phase 100V)

  • This single-phase electric chain hoist with a geared trolley can be moved upward and downward via a two-button switch.
  • The rated load of 1 tw is applicable to a two-chain configuration.
  • The standard lift is 3 m. The length of a standard power cable is 5 m.
  • Please consult us for different cable lengths or for other power feeding systems.

SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing rail width (mm) Min. curve radius Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm) Hook mass (kg) Hand chain length ℓ(m) Traversing distance achieved by pulling hand chain 1 m (mm) Net weight* (kg)
ECCG40030 300kg 3 75 1 5 2.6 475 0.7 3 229 48
ECCG40050 500kg 100 510 3 48
ECCJG40100 1tw 125 640 2.4 3 53

Notes:

  • Figures marked with an asterisk (*) are based on the standard lift.
  • Specifications are subject to change for improvements without notice.
  • Please refer to the specifications for the ECC4 for items related to hoisting.
