รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECP4 Series

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECP4 Series

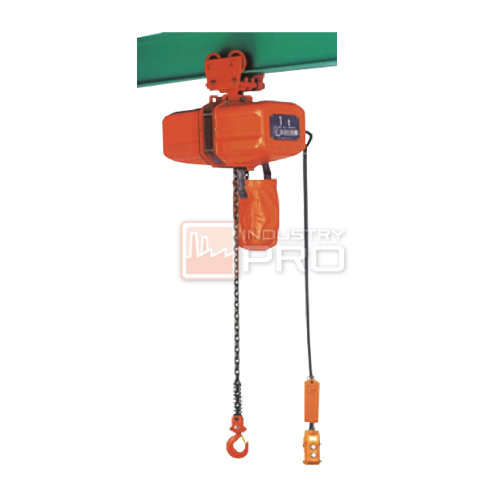

Plain Trolley Type Electric Chain Hoists (3-phase 200V)

  • This plain trolley hoist can be moved upward and downward via a two-button switch.
  • A four-button switch is used when combining the hoist with a motorized crane (traveling type).
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 5 m. (That of a four-button model used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing rail width b (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m) Min. headroom G (mm)
ECP40025 250kg 3 75 1 5 2.6 475
6 100 5.6
ECP40050 500kg 3 125 2.6 510
6 5.6
ECJP40100 1tw 3 2.6 640
6 5.6
ECP40100 1t 3 2.6 550
6 5.6
ECJP40200 2t 3 100 1.2 2.6 765
125
6 150 5.6
