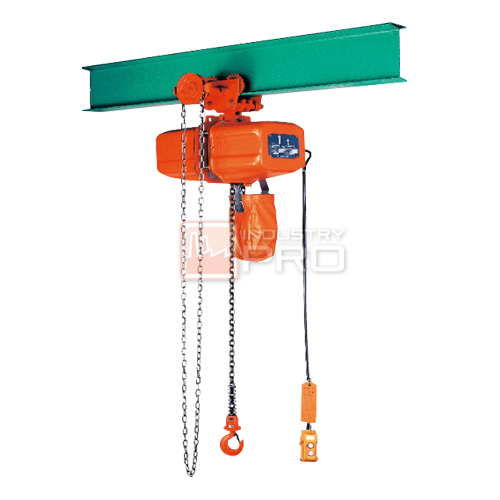

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECTG4 Series

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECTG4 Series



  • This two-speed electric chain hoist with a geared trolley can be moved upward and downward via a two-button switch.
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 5 m. (That of a four-button model used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.



SPECIFICATIONS

Item no. Rated load Standard lift (m) Traversing rail width (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m)
ECTG40025 250kg 3 75 1 5 2.6
6 100 5.6
ECTG40050 500kg 3 125 2.6
6 5.6
ECTJG40100 1tw 3 2.6
6 5.6
ECTG40100 1t 3 2.6
6 5.6
ECTJG40200 2t 3 100 1.2 2.6
125
6 150 5.6



Item no. Min. headroom G (mm) Hook mass (kg) Hand chain length ℓ(m) Traversing distance achieved by pulling hand chain 1 m (mm) Net weight* (kg)
ECTG40025 475 0.7 3 229 49
6 55
ECTG40050 510 3 53
6 58
ECTJG40100 640 2.4 3 58
6 65
ECTG40100 550 0.9 3 65
6 73
ECTJG40200 765 5 3 138 85
6 95

Notes:

  • Figures marked with an asterisk (*) are based on the standard lift.
  • Specifications are subject to change for improvements without notice.
  • Please refer to the specifications for the ECT4 for items related to hoisting.
