รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น MCG-5 Series

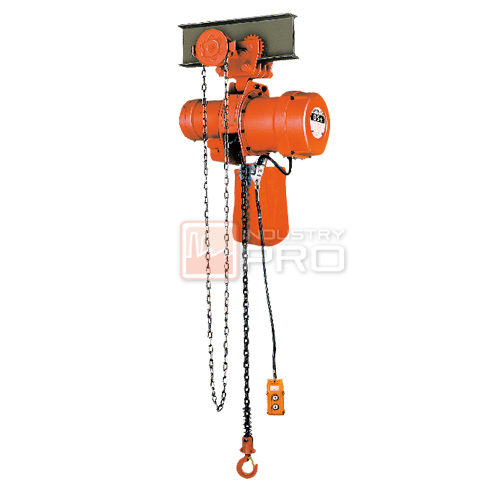

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MCG-5 Series



Features

  • With a geared trolley coupled with the MHC-5 single-phase electric chain hoist, the MCG-5, which runs on home power supply, can be moved manually in a traversing direction simply by pulling a hand chain.



SPECIFICATIONS

Item no. Rated load (t) Standard lift (m) Hoisting speed Motor output (kW) Rated time (min) Load chain
50Hz 60Hz Diameter No. of falls
m/sec m/min m/sec m/min
MCG5005 0.5 4 0.09 5.4 0.107 6.4 0.62 15 7.1 1
MCG5010 1 0.045 2.7 0.0533 3.2



Item no. Rated load (t) Power cable length (m) Push-button switch cord length S (m) Test load (t) Traversing rail width b (mm) Min. curve radius (m) Min. headroom G (mm) Net weight* (kg) Hook mass (kg)
MCG5005 0.5 5 3.6 0.625 75,100,125 1 515 76 0.7
MCG5010 1 1.25 525 0.9



Item no. Rated load (t) External dimensions (mm)
A B D E F H I J K L
MCG5005 0.5 305 285 152 106 20 b/2+189 105 110 206 24-t2
MCG5010 1 25



Item no. Rated load (t) External dimensions (mm) Hand chain length ℓ (m) Traversing distance achieved by pulling hand chain 1 m (mm)
M N P* Q* T U
MCG5005 0.5 b-42 φ62 655 220 72+t2 80+t2 4 229
MCG5010 1

Notes:

  • Specifications are subject to change for improvements without notice.
  • An asterisk (*) indicates figures that are subject to change depending on the lift. Please contact us for further details.
