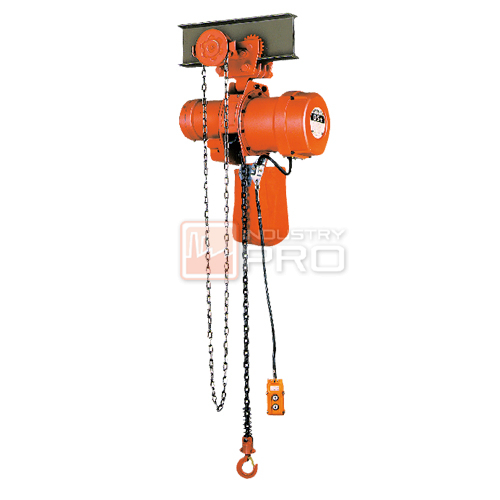

| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | Motor output (kW) | Motor insulation class | Rated time (min) | ||||
| 50Hz | 60Hz | |||||||||
| (m/sec) | (m/min) | (m/sec) | (m/min) | 50Hz | 60Hz | |||||
| MHG5005 | 0.5 | 4 | 0.143 | 8.6 | 0.167 | 10 | 0.83 | 1 | B | 30 |
| MHG5010 | 1 | 0.103 | 6.2 | 0.122 | 7.3 | 1.17 | 1.4 | |||
| MHG5020 | 2 | 0.112 | 6.7 | 0.132 | 7.9 | 2.5 | 3 | |||
| MHG5030 | 3 | 0.073 | 4.4 | 0.087 | 5.2 | |||||
| MHG5050 | 5 | 0.043 | 2.6 | 0.052 | 3.1 | |||||
| MHG5075 | 7.5 | 0.028 | 1.7 | 0.035 | 2.1 | |||||
| MHG5100S | 10 | 0.022 | 1.3 | 0.027 | 1.6 | |||||
| (single suspension) | ||||||||||
| MHG5100W | 10 | 0.043 | 2.6 | 0.052 | 3.1 | 2.5×2 | 3.0×2 | |||
| (double suspension) | ||||||||||
| MHG5150 | 15 | 0.028 | 1.7 | 0.035 | 2.1 | |||||
| MHG5200 | 20 | 0.022 | 1.3 | 0.027 | 1.6 | |||||
| Item no. | Rated load (t) | Load chain | Power cable length (m) | Push-button switch cord length S (m) | Test load (t) | Traversing rail width b (mm) | Min. curve radius (m) | Min. headroom G (mm) | |
| Diameter | No. of falls | ||||||||
| MHG5005 | 0.5 | 7.1 | 1 | 5 | 3.6 | 0.625 | 75,100,125 | 1 | 515 |
| MHG5010 | 1 | 1.25 | 525 | ||||||
| MHG5020 | 2 | 11.2 | 3.8 | 2.5 | 100,125,150 | 1.2 | 710 | ||
| MHG5030 | 3 | 3.75 | 1.5 | 770 | |||||
| MHG5050 | 5 | 2 | 6.25 | 125,150,175 | 955 | ||||
| MHG5075 | 7.5 | 3 | 9.375 | 150,175 | 3 | 1,080 | |||
| MHG5100S | 10 | 4 | 4 | 12.5 | ∞ | 1,060 | |||
| (single suspension) | |||||||||
| MHG5100W | 10 | 3 | |||||||
| (double suspension) | |||||||||
| MHG5150 | 15 | 6 | 4.2 | 18.75 | 175 | 5 | 1,170 | ||
| MHG5200 | 20 | 8 | 4.3 | 25 | 1,290 | ||||
| Item no. | Rated load (t) | Hook mass (kg) | External dimensions (mm) | |||||||||||
| A | B | D | E | F | J | K | L | M | N | P* | Q* | |||
| MHG5005 | 0.5 | 0.7 | 265 | 285 | 152 | 106 | 20 | 110 | 206 | 24-t2 | b-42 | φ62 | 655 | 220 |
| MHG5010 | 1 | 0.9 | 285 | 25 | ||||||||||
| MHG5020 | 2 | 2.3 | 335 | 335 | 195 | 127 | 30 | 140 | 262 | 28-t2 | b-63 | φ83 | 845 | 235 |
| MHG5030 | 3 | 3.5 | 36 | 160 | 306 | 27-t2 | φ107 | 885 | ||||||
| MHG5050 | 5 | 13.5 | 247 | 93 | 43 | 172 | 329 | 35-t2 | b-76 | φ110 | 990 | 290 | ||
| MHG5075 | 7.5 | 30 | 360 | 145 | 65 | 222 | 420 | 42-t2 | b-84 | φ155 | 1,160 | 400 | ||
| MHG5100S | 10 | 37 | 410 | 245 | 1,130 | 440 | ||||||||
| (single suspension) | ||||||||||||||
| MHG5100W | 10 | 370 | 370 | 1,020 | 410 | |||||||||
| (double suspension) | ||||||||||||||
| MHG5150 | 15 | 77 | 500 | 500 | 79 | 400 | 760 | 48-t2 | b-115 | φ228 | 1,180 | 520 | ||
| MHG5200 | 20 | 110 | 590 | 590 | 402 | 762 | 55-t2 | φ264 | 1,280 | 610 | ||||
| Item no. | Rated load (t) | External dimensions (mm) | Hand chain length ℓ(m) | Traversing distance achieved by pulling hand chain 1m | Net weight* (kg) | |||
| U | H | I | T | |||||
| MHG5005 | 0.5 | 80+t2 | b/2+189 | 105 | 72+t2 | 4 | 229 | 71 |
| MHG5010 | 1 | 73 | ||||||
| MHG5020 | 2 | 102+t2 | b/2+150 | 127 | 115+t2 | 138 | 126 | |
| MHG5030 | 3 | 126+t2 | 133 | 118+t2 | 146 | 139 | ||
| MHG5050 | 5 | 134+t2 | b/2+339 | 166 | 130+t2 | 4.3 | 134 | 185 |
| MHG5075 | 7.5 | 175+t2 | b/2+326 | 186 | 161+t2 | 4.6 | 103 | 280 |
| MHG5100S | 10 | b/2+326 | 300 | |||||
| (single suspension) | ||||||||
| MHG5100W | 10 | b/2+333 | 380 | |||||
| (double suspension) | ||||||||
| MHG5150 | 15 | 291+t2 | b/2+325 | b/2+355 | 297+t2 | 4.8 | 80 | 755 |
| MHG5200 | 20 | 308+t2 | b/2+360 | 253+t2 | 44 | 920 | ||
