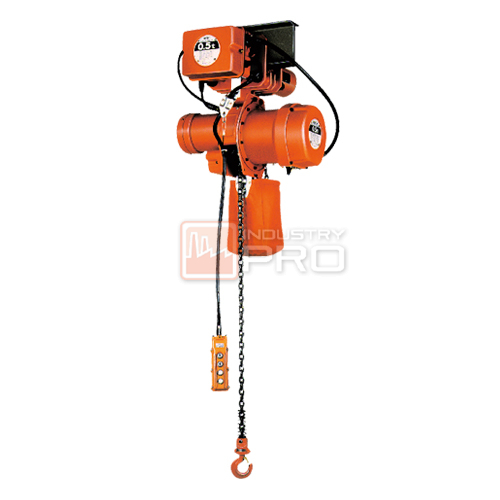

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น MTE-5

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MTE-5



Motorizes Trolley Type Two-Speed Electric Chain Hoist

Features

  • Developed to handle precision work such as positioning, the MTE-5 is equipped with a 1-to-4 two-speed function to achieve optimal work efficiency.
  • The built-in electric trolley contributes to improved work efficiency.

Main Applications

  • Forming and molding
  • Casting
  • Transportation of precision equipment
  • Maintenance of large, high-precision machines
  • Assembly of precision machines



SPECIFICATIONS

Item no. Rated load (t) Standard lift (m) Traversing Traversing rail width b (mm)
Speed Motor output (kW) Motor insulation class Rated time (min)
50Hz 60Hz
(m/sec) (m/min) (m/sec) (m/min)
MTE5005 0.5 4 0.333 20 0.400 24 0.2 E 30 75,100,125
MTE5010 1 0.167* 10* 0.200* 12* 0.2
MTE5020 2 0.4 100,125,150
MTE5025 2.5 0.4
MTE5050 5 0.75 125,150,175
*0.4

Notes:

  • Specifications are subject to change for improvements without notice.
  • Figures under “Traversing” marked with an asterisk (*) indicate half speeds.
  • Please refer to the specifications for the MHT-5 for items related to hoisting.
