รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI RCTP2 Series

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI RCTP2 Series

Plain Trolley Type Two-Speed Compact Electric chain Hoist (1-phase 100V)

Features

  • Can be plugged into a 100V AC home power outlet for simple and easy operation.
  • Shorter headroom enables greater hoisting distance. The rated load has also been increased by 250 kg for improved work efficiency.
  • Oil bath lubrication keeps the gears and mechanical brake highly wear-resistant and durable.
  • Friction-clutch over-winding protector*1 comes standard.
  • The load chain is made from a special alloy steel for increased strength. A rustproof chain is optionally available.
  • Use of a two-stage push-button allows you to change the operation speed with ease. A switch that can change the operation speed of a hoist via volume adjustment is optionally available.

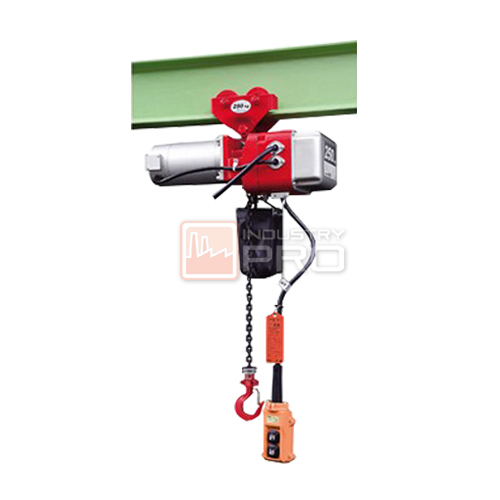

  • The hoist can either be integrated into the plain trolley or suspended from it with a hook.*2 (The diagram below shows an integrated hoist.)



SPECIFICATIONS

Power supply Type Item no. Rated load (kg) Standard lift (m) Hoisting speed*3 DC motor output (W) Short-time rating (min) Duty cycle*4(%ED)
Standard Low
Single-phaseAC100V50/60Hz 2-speed RCTP20010 100 3 0.167m/sec 0.0167m/sec[1m/min] 200 25 40
6 [10m/min]
RCTP20025 250 3 0.167m/sec 400 25 30
6 [10m/min]
RCTP20049 490 3 0.0783m/sec 400 25 30
6 [4.7m/min]



Item no. Hoist class Load chain Power cable length (m) Net weight (kg) External dimensions (mm)
Diameter (mm) No. of falls A B D E ♦F G
RCTP20010 M3 4 1 5 15 179 187 82 80 24 275
16
RCTP20025 M4 20 236 199 88 91 24 280
21
RCTP20049 M4 2 26.5 109 71 20 370
29



Item no. External dimensions (mm)
H I K L ♦M ♦P ♦Q ♦S (m)
RCTP20010 28+b/2 92 160 12-t2 b-34 355 120 2.5
455 5.5
RCTP20025 360 120 2.5
460 5.5
RCTP20049 93 105 195 23-t2 b-43 480 140 2.5
480 180 5.5

Notes:

  • Figures marked with a (♦) are for reference purposes only.
  • Specifications are subject to change for improvements without notice.
    • *1: The friction-clutch over-winding protector should not be activated except for emergency cases. DO NOT leave the over-winding protector running with the load suspended at the lifting and lowering limits.
    • *2: A hoist suspended from the trolley requires longer minimum headroom G than the integrated one.
    • *3: This is an average speed when the hoist is operating with a rated load. Hoisting speed is subject to change depending on whether lifting or lowering, on the size of a load, and on the voltage and frequency being used.
    • *4: Duty cycle (%ED) is the ratio of the active (motor operating) time to the duration of a complete cycle. It is calculated based on the assumption that the hoist is lifting a load 63% of the rated one.
