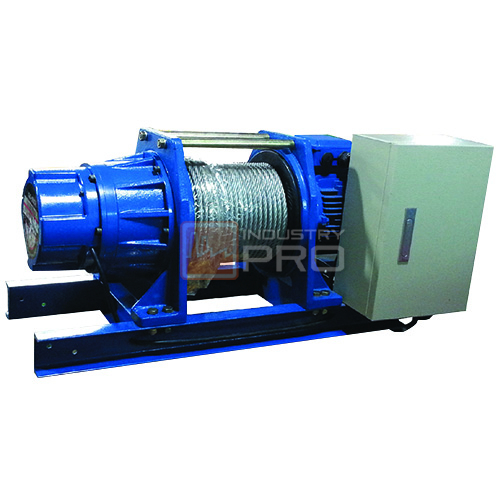

กว้านสลิงไฟฟ้า CHIYEAH รุ่น GG-1~10Ton-Series

กว้านสลิงไฟฟ้า CHIYEAH รุ่น GG-1~10Ton-Series

FEATURES

  • Highly nominal and efficient roller bearing is used on the gear.
  • The gear has received heat treatment high precision processing and is abrasion resistant.
  • The power is under even distribution of force for higher safety and longer lifetime.
  • The electromagnetic brake requires no adjustment clearance and it brakes automatically during power failure thereby offering both safety and reliability.
  • Motor sensor for longer and more frequent usage as well as easy maintenance.
  • Three phases 220V/380V/440V.

SPECIFICATIONS

Model Lifting Capacity (top layer) Lifting Speed :Option Motor:Option Lifting height Wire Rope
CHIYEA GG-1000 1,000 kg 15 ~ 20 m/min 5.5 HP x 4 poles 97 m 10 mm x 100 m
CHIYEA GG-1050 1,000 kg 12~ 18 m/min 3HP x 6 poles 97 m 10 mm x 100 m
CHIYEA GG-1100 1,100 kg 15 ~ 20 m/min 5.5 HP x 6 poles 97 m 12 mm x 100 m
CHIYEA GG-2000 2,000 kg 15 ~ 20 m/min 7.5 HP x 4 poles 97 m 14 mm x 100 m
CHIYEA GG-3000 3,000 kg 15 ~ 20 m/min 10HP x 4 poles 97 m 16 mm x 100 m

Note: Above performance ratings are based on 50 Hz supply. (60 Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%)
1. All ratings are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation、to increase line pull by approximately 85%

OPTIONAL ACCESSORIES

‧ Pendant control K-61B assembly

Model STANDARD ACCESSORIES PACKAGE
CHIYEA GG-1000        – Wire rope w/safety hook
– Switch cord 1.25 mm x 3C x 3 m
– Power lead 3.5 mmx 4C x 0.3 m
– Pendant Switch K61
– Base Plate
       – Winch Weight : 200 kg
– Gross Weight : 201 kg
CHIYEA GG-1050        – Wire rope w/safety hook
– Switch cord 1.25 mm x 3C x 10m
– Power lead 5.5mmx 3C x 0.3 m
– Pendant Switch K61
– Base Plate
       – Winch Weight : 250 kg
– Gross Weight : 300 kg
CHIYEA GG-1100        – Wire rope w/safety hook
– Switch cord 1.25 mm x 3C x 3 m
– Power lead 3.5 mmx 4C x 0.3 m
– Pendant Switch K61
– Base Plate
       – Winch Weight : 220 kg
– Gross Weight : 250 kg
CHIYEA GG-2000        – Wire rope w/safety hook
– Switch cord 1.25 mm x 3C x 3 m
– Power lead 3.5 mmx 4C x 0.3 m
– Pendant Switch K61
– Base Plate
       – Winch Weight : 300 kg
– Gross Weight : 301 kg
CHIYEA GG-3000        – Wire rope w/safety hook
– Switch cord 1.25 mm x 3C x 3 m
– Power lead 3.5 mmx 4C x 0.3 m
– Pendant Switch K61
– Base Plate
       – Winch Weight : 400 kg
– Gross Weight : 410 kg
