รอกสลิงไฟฟ้า ยี่ห้อ KAMAUCHI รุ่น R TYPE

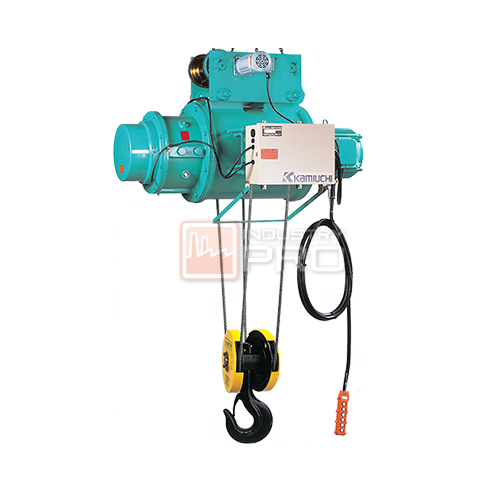

รอกสลิงไฟฟ้า KAMAUCHI รุ่น R TYPE

Category รอกสลิง Tags Electric Wire Rope, Hoist & Crane, HYUNDAI, รอกสลิงไฟฟ้า, รอกและระบบลำเลียง

รอกสลิงไฟฟ้า ยี่ห้อ KAMIUCHI รุ่น R TYPE

■Features
-The totally-enclosed, self-cooled, class F insulation motors, designed for the new series, have high efficiency, high performance, and high torque, and excel in durability.
-All motors are furnished with an external terminal box, and are easy to wire and maintain.
-Made of excellent heat resistant insulating materials, the insulation system is high in reliability, resisting humidity, heat and
environment.
-The torque characteristic and starting input characteristic have a sufficient allowance.
-The hoist motor is provided with radiation fin, which keeps the temperature rise to a minimum.
-All the motors are of a low noise type.
-As Trolley brake is equipped with Release device, hoist can be moved under Power supply cut-off condition at the time of installation and maintenance and inspection.
-As Trolley motor is equipped with heat

Product Description

■Safety device

-Magnet (Electromagnetic) brake Disc type DC brake is applied for winding-up and trolley. Lining made from Non-asbestos material with excellent abrasion resistant performance is applied and so can be used for long time without anxiety. Their construction is very simple and easy for the brake gap adjustment. Easy usage and performance are improved remarkably.

-Dual upper limit switch The control circuit is cut off by the first upper limit switch to stop lifting. In the case of reverse phase operation, reverse winding or short-circuit the second upper limit switch cut off the main circuit, of the hoist motor.

-Load limiter (option) Overload preventing device through electric current detecting system.

-Power line sensor (option) Contact-fusion detecting device. Voltage converter will be required, if the power source for main circuit is NOT 3-phase, 200V (50Hz/60Hz). Consult us.

-Thermal unit (option) Detecting the winding temperature of the motor, this is a safety unit to stop the motor when the temperature exceeds the limit.

SPECIFICATIONS

Power source	Three-phase 200V 50/60Hz, 220V 60Hz, 380V·400V 50Hz, 400V·440V 60Hz
Cntrol	Pendant control unit for floor-operation
Rating	60 minute rating
Power feeding method	Electric power shall be supplied to the control panel.
Service temperature	From-10˚C to +40˚C
Service humidity	90%RH or less (No dew)
Protective structure	Totally enclosed dustproof type
Duty rating	40%ED
Pertinent standards	JIS C 9620 (Electric Hoist) and Japanese Construction
Paint color	Hoist body Munsell 2.5BG6/6.5 Trolly motor Munsell 2.5PB7/4 Control box Munsell 5Y7/1 Sheave cover (Hook block ) Munsell2.5Y8/12(over 5t) Sheave cover (Hook block ) Munsell5.5YR6.5/12 (bellow 3t)

Rated Load				500 kg	1t		2t		2.8t		3t		5t
Model				KAMAUCHI RTM-1/2CLNN	KAMAUCHI RTM-1CLNN	KAMAUCHI RTM-1CLHNN	KAMAUCHI RTM-2CLNN	KAMAUCHI RTM-2CLHNN	KAMAUCHI RTM-2.8CLNN	KAMAUCHI RTM-2.8CLHNN	KAMAUCHI RTM-3CLNN	KAMAUCHI RTM-3CLHNN	KAMAUCHI RTM-5CLNN
Lifting Height(m)				6	6	12	6	12	6	12	6	12	6
Hoist	Hoist Lifting Speed(m/s) (m/min)		50Hz	0.17 (10)		0.17 (10)		0.13 (7.5)		0.13 (7.5)		0.13 (7.5)	0.12 (7)
	Hoist Lifting Speed(m/s) (m/min)		60Hz	0.20 (12)		0.20 (12)		0.15 (9)		0.15 (9)		0.15 (9)	0.14 (8.4)
	Hoist Motor		kW	1.5	2.6		3.7		5.3		5.5		9
	Hoist Motor		Pole	4	4		4		4		4		4
	Rated Current (A)	200V	50Hz	7.0	11.5		16		24		24		34
		200V	60Hz	6.6	11.5		16		24		24		34
		220V	60Hz	6.6	10.5		15		23		23		32
Trolley	Trolley Speed (m/s) (m/min)		50Hz	0.35 (21)	0.35 (21)		0.35 (21)		0.35 (21)		0.35 (21)		0.35 (21)
	Trolley Speed (m/s) (m/min)		60Hz	0.42 (25)	0.42 (25)		0.42 (25)		0.42 (25)		0.42 (25)		0.42 (25)
	Trolley Motor		kW	0.2	0.2		0.4		0.4		0.4		0.75
	Trolley Motor		Pole	4	4		4		4		4		4
	Rated Current (A)	200V	50Hz	1.24	1.24		2.35		2.35		2.35		3.88
		200V	60Hz	1.09	1.09		2.05		2.05		2.05		3.43
		220V	60Hz	1.09	1.09		2.02		2.02		2.02		3.35
Wire Rope		Falls		4	4		4		4		4		4
		Construction		6xW (19)			6xFi (29)
		Dia (mm)		4	5		8		9		9		11.2
Approx. Dimensions (mm)			L	6000	6000	12000	6000	12000	6000	12000	6000	12000	6000
			H	380	450	450	550	550	650	650	650	650	800
			A	405	435	570	520	660	560	705	560	705	660
			B	395	480	615	510	650	555	700	555	700	700
			E	355	355	355	390	390	390	390	390	390	495
			C	280	350	350	385	385	410	410	410	410	500
			D	310	320	320	400	400	440	440	440	440	530
			W	190	190	190	230	230	230	230	230	230	280
			M	130	130	130	155	155	155	155	155	155	180
			N	Ø80	Ø80	Ø80	Ø100	Ø100	Ø100	Ø100	Ø100	Ø100	Ø130
			Q	66	66	66	50	50	50	50	50	50	74
			T	55	75	75	75	105	105	110	110	110	125
Approx. weight (kg)				150	200	230	360	420	430	480	430	480	720
Min.Radius				4mR			3mR						4.5mR
Standard l beam width (mm)				125									150

Rated Load				20t
Model				KAMAUCHI RMT-20CNN	KAMAUCHI RMT-20CHNN
Lifting Height(m)				6	12
Hoist	Hoist Lifting Speed(m/s) (m/min)		50Hz	0.075 (4.5)
			60Hz	0.092 (5.5)
	Hoist Motor		kW	22
			Pole	4
	Rated Current (A)	200V	50Hz	86
		200V	60Hz	86
		220V	60Hz	82
Trolley	Trolley Speed (m/s) (m/min)		50Hz	0.31 (18.5)
			60Hz	0.37 (22)
	Trolley Motor		kW	2×0.75
			Pole	4
	Rated Current (A)	200V	50Hz	2×3.88
		200V	60Hz	2×3.43
		220V	60Hz	2×3.35
Wire Rope		Falls		4
		Construction		6xFi (29)
		Dia (mm)		22.4
Approx. Dimensions (mm)			L	6000	12000
			H	1750	1750
			A	1010	1235
			B	975	1200
			E	535	535
			F	770	770
			K1
			K2
			W	750	1200
			M	224	224
			N	Ø100	Ø100
			Q	72	72

Approx. weight (kg)				2150	2300
Min.Radius				Straight track
Standard l beam width (mm)				175

Rated Load				500 kg		1t		2t		2.8t		3t		5t		7.5t		10t		15t
Model				KAMAUCHI RTM-1/2CNN	KAMAUCHI RTM-1/2CHNN	KAMAUCHI RTM-1CNN	KAMAUCHI RTM-1CHNN	KAMAUCHI RTM-2CNN	KAMAUCHI RTM-2CHNN	KAMAUCHI RTM-2.8CNN	KAMAUCHI RTM-2.8CHNN	KAMAUCHI RTM-3CNN	KAMAUCHI RTM-3CHNN	KAMAUCHI RTM-5CNN	KAMAUCHI RTM-5CHNN	KAMAUCHI RTM-7.5CNN	KAMAUCHI RTM-7.5CHNN	KAMAUCHI RTM-10CNN	KAMAUCHI RTM-10CHNN	KAMAUCHI RTM-15CNN	KAMAUCHI RTM-15CHNN
Lifting Height(m)				6	12	6	12	6	12	6	12	6	12	6	12	6	12	6	12	6	12
Hoist	Hoist Lifting Speed(m/s) (m/min)		50Hz	0.17 (10)		0.17 (10)			0.13 (7.5)		0.13 (7.5)	0.13 (7.5)		0.12 (7)		0.083 (5)		0.075 (4.5)		0.075 (4.5)
			60Hz	0.20 (12)			0.20 (12)		0.15 (9)		0.15 (9)		0.15 (9)	0.14 (8.4)		0.10 (6)		0.092 (5.5)		0.092 (5.5)
	Hoist Motor		kW	1.5		2.6		3.7		5.3		5.5		9		11		11		18.5
			Pole	4		4		4		4		4		4		6		6		6
	Rated Current (A)	200V	50Hz	7.0		11.5		16		24		24		34		48		48		68
		200V	60Hz	6.6		11.5		16		24		24		34		48		48		68
		220V	60Hz	6.6		10.5		15		23		23		32		46		46		64
Trolley	Trolley Speed (m/s) (m/min)		50Hz	0.35 (21)		0.35 (21)		0.35 (21)		0.35 (21)		0.35 (21)		0.35 (21)		0.35 (21)		0.31 (18.5)		0.31 (18.5)
			60Hz	0.42 (25)		0.42 (25)		0.42 (25)		0.42 (25)		0.42 (25)		0.42 (25)		0.42 (25)		0.37 (22)		0.37 (22)
	Trolley Motor		kW	0.2		0.2		0.4		0.4		0.4		0.75		2×0.4		2×0.4		2×0.75
			Pole	4		4		4		4		4		4		4		4		4
	Rated Current (A)	200V	50Hz	1.24		1.24		2.35		2.35		2.35		3.88		2×2.35		2×2.35		2×3.88
		200V	60Hz	1.09		1.09		2.05		2.05		2.05		3.43		2×2.05		2×2.05		2×2.43
		220V	60Hz	1.09		1.09		2.02		2.02		2.02		3.35		2×2.02		2×2.02		2×3.35
Wire Rope		Falls		4		4		4		4		4		4		4		4		4
		Construction		6xW (19)				6xFi (29)
		Dia (mm)		5		8		10		12.5		12.5		16		14		16		20
Approx. Dimensions (mm)			L	6000	12000	6000	12000	6000	12000	6000	12000	6000	12000	6000	12000	6000	12000	6000	12000	6000	12000
			H	680	680	750	750	920	920	1080	1080	1080	1080	1300	1300	1210	1210	1430	1430	1650	1650
			A	335	405	370	445	430	500	470	560	470	560	560	660	710	910	780	955	935	1135
			B	325	395	415	540	420	530	465	555	465	555	600	700	800	100	785	960	875	1075
			E	355	355	355	355	390	390	390	390	390	390	495	495	430	430	440	40	535	535
			F	330	330	330	330	365	365	415	415	415	415	475	475	550	550	690	690	750	750
			K1	40	75	50	125	50	100	55	105	55	105	65	120
			K2	40	70	50	75	45	75	50	90	50	90	50	100
			W	190	190	190	190	230	230	230	230	230	230	280	280	500	500	450	450	600	600
			M	130	130	130	130	155	155	155	155	155	155	180	180	176	176	176	176	224	224
			N	Ø80	Ø80	Ø80	Ø80	Ø100	Ø100	Ø100	Ø100	Ø100	Ø100	Ø130	Ø150	Ø150	Ø150	Ø150	Ø150	Ø200	Ø200
			Q	66	66	66	66	50	50	50	50	50	50	74	74	73	73	81	81	72	72
			S	0	0	0	0	25	0	20	0	0	0	0
Approx. weight (kg)				140	160	170	190	310	360	370	420	370	420	650	650	800	900	1300	1450	2000	2000
Min.Radius				4mR				3mR						4.5mR		Straight track		Straight track		Straight track
Standard l beam width (mm)				125										150		175
