Electric Wire Rope Hoists SWF รุ่น WRH NOVA Series

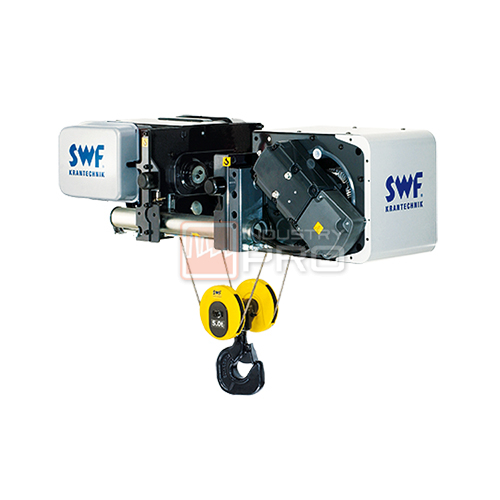

Electric Wire Rope Hoists SWF WRH NOVA L



NOVA L single girder trolley, low headroom, up to 12,5 t



• Optimum utilisation of space
Compact installation dimensions and optimum approach dimensions, minimum hook dimensions
• Precise and safe work
Minimum lateral hook movements and low load swing thanks to smooth load movement with frequency inverters
• Low maintenance costs
The brake designed to extend the lifetime, the larger diameter of the rope drum to protect the load rope, the hoist gear lubricated to extend the lifetime and the smooth cross travelling with the frequency inverter reduces material wear and tear



Advantage: Maximum cost effectiveness and optimum utilisation of space

• Loads of up to 12,5 t
• Single hoist or as a crane kit
• Low lateral hook movement
• Compact installation dimensions
• Optimum approach dimensions
• Stepless cross and long travelling
• Ambient temperature -10°C to +40°C



Standard equipment

• 2-speed hoisting motors (6/1)
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NE/NF)
• 4-step hoisting limit switch with slow-down function and phase mismatch protection
• Electronic overload protection
• Thermal protection for hoisting and travelling motors
• Travelling machinery with frequency inverter, 2-step or stepless
• Standard 3-phase voltages 380/400/415 V 50 Hz; 440/460/480 V 60 Hz
• 48 V contactor control
• IP 55 protection, duty factor 60 %
• Electrical assembly and wiring in accordance with IEC standards
• Robust rope guide made of cast iron
• Epoxy paint, 60 μm



Options

• IP65 control pendant with plug adapter and Emergency-Stop
• Radio remote control
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NB/NC/ND)
• Load summation for max. 4 hoists with NovaMaster
• Hoisting inverter with ESR
• 2-step trolley travel limit switch
• External fan for hoisting motor
• Standby heating for bridge panels and motors
• Special operating voltage 208 – 690 V 50/60 Hz
• IP66 protection
• Ambient temperature -20°C – +55°C
• Explosion proof version
• Stainless steel hoist panel
• Rain covers
• Articulated trolley for curved track
• Drum brake
• Lockable hook/ramshorn hook
• Cable reel
and much more



Electric Wire Rope Hoists SWF WRH NOVA M



NOVA M double girder trolley, up to 80 t



• Optimum utilisation of space
Compact installation dimensions and optimum approach dimensions, minimum hook dimensions
• Precise and safe work
Minimum lateral hook movements and low load swing thanks to smooth load movement with frequency inverters
• Low maintenance costs
The brake designed to extend the lifetime, the larger diameter of the rope drum to protect the load rope, the hoist gear lubricated to extend the lifetime and the smooth cross travelling with the frequency inverter reduces material wear and tear



Advantage: Maximum cost effectiveness and optimum utilisation of space

• Loads of up to 80 t
• Single hoist or as a crane kit
• Low lateral hook movement
• Compact installation dimensions
• Optimum approach dimensions
• Stepless cross and long travelling
• Ambient temperature -10°C to +40°C



Standard equipment

• 2-speed hoisting motors (6/1)
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NE/NF)
• 4-step hoisting limit switch with slow-down function and phase mismatch protection
• Electronic overload protection
• Thermal protection for hoisting and travelling motors
• Travelling machinery with frequency inverter, 2-step or stepless
• Standard 3-phase voltages 380/400/415 V 50 Hz; 440/460/480 V 60 Hz
• 48 V contactor control
• IP 55 protection, duty factor 60 %
• Electrical assembly and wiring in accordance with IEC standards
• Robust rope guide made of cast iron
• Epoxy paint, 60 μm



Options

• IP65 control pendant with plug adapter and Emergency-Stop
• Radio remote control
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NB/NC/ND)
• Load summation for max. 4 hoists with NovaMaster
• Hoisting inverter with ESR
• 2-step trolley travel limit switch
• External fan for hoisting motor
• Standby heating for bridge panels and motors
• Special operating voltage 208 – 690 V 50/60 Hz
• IP66 protection
• Ambient temperature -20°C – +55°C
• Explosion proof version
• Stainless steel hoist panel
• Rain covers
• Articulated trolley for curved track
• Drum brake
• Lockable hook/ramshorn hook
• Cable reel
and much more



Electric Wire Rope Hoists SWF WRH NOVA N



NOVA N single girder trolley, normal headroom, up to 40 t



• Optimum utilisation of space
Compact installation dimensions and optimum approach dimensions, minimum hook dimensions
• Precise and safe work
Minimum lateral hook movements and low load swing thanks to smooth load movement with frequency inverters
• Low maintenance costs
The brake designed to extend the lifetime, the larger diameter of the rope drum to protect the load rope, the hoist gear lubricated to extend the lifetime and the smooth cross travelling with the frequency inverter reduces material wear and tear



Advantage: Maximum cost effectiveness and optimum utilisation of space

• Loads of up to 40 t
• Single hoist or as a crane kit
• Low lateral hook movement
• Compact installation dimensions
• Optimum approach dimensions
• Stepless cross and long travelling
• Ambient temperature -10°C to +40°C



Standard equipment

• 2-speed hoisting motors (6/1)
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NE/NF)
• 4-step hoisting limit switch with slow-down function and phase mismatch protection
• Electronic overload protection
• Thermal protection for hoisting and travelling motors
• Travelling machinery with frequency inverter, 2-step or stepless
• Standard 3-phase voltages 380/400/415 V 50 Hz; 440/460/480 V 60 Hz
• 48 V contactor control
• IP 55 protection, duty factor 60 %
• Electrical assembly and wiring in accordance with IEC standards
• Robust rope guide made of cast iron
• Epoxy paint, 60 μm



Options

• IP65 control pendant with plug adapter and Emergency-Stop
• Radio remote control
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NB/NC/ND)
• Load summation for max. 4 hoists with NovaMaster
• Hoisting inverter with ESR
• 2-step trolley travel limit switch
• External fan for hoisting motor
• Standby heating for bridge panels and motors
• Special operating voltage 208 – 690 V 50/60 Hz
• IP66 protection
• Ambient temperature -20°C – +55°C
• Explosion proof version
• Stainless steel hoist panel
• Rain covers
• Articulated trolley for curved track
• Drum brake
• Lockable hook/ramshorn hook
• Cable reel and much more



Electric Wire Rope Hoists SWF WRH NOVA F



NOVA F fixed hoist for freestanding installations, up to 80 t



• Optimum utilisation of space
Compact installation dimensions, minimum hook dimensions
• Precise and safe work
Minimum lateral hook movements and low load swing thanks to smooth load movement with frequency inverters
• Low maintenance costs
The brake designed to extend the lifetime, the larger diameter of the rope drum to protect the load rope, the hoist gear lubricated to extend the lifetime



Advantage: Maximum cost effectiveness and optimum utilisation of space

• Loads of up to 80 t
• Low lateral hook movement
• Compact installation dimensions
• Ambient temperature -10°C to +40°C



Standard equipment

• 2-speed hoisting motors (6/1)
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NE/NF)
• 4-step hoisting limit switch with slow-down function and phase mismatch protection
• Electronic overload protection
• Thermal protection for hoisting and travelling motors
• Travelling machinery with frequency inverter, 2-step or stepless
• Standard 3-phase voltages 380/400/415 V 50 Hz; 440/460/480 V 60 Hz
• 48 V contactor control
• IP 55 protection, duty factor 60 %
• Electrical assembly and wiring in accordance with IEC standards
• Robust rope guide made of cast iron
• Epoxy paint, 60 μm



Options

• IP65 control pendant with plug adapter and Emergency-Stop
• Radio remote control
• Hoist condition monitoring system NovaMaster with Safe Working Period Counter (NOVA NB/NC/ND)
• Load summation for max. 4 hoists with NovaMaster
• Hoisting inverter with ESR
• 2-step trolley travel limit switch
• External fan for hoisting motor
• Standby heating for bridge panels and motors
• Special operating voltage 208 – 690 V 50/60 Hz
• IP66 protection
• Ambient temperature -20°C – +55°C
• Explosion proof version
• Stainless steel hoist panel
• Rain covers
• Articulated trolley for curved track
• Drum brake
• Lockable hook/ramshorn hook
• Cable reel
and much more



Electric Wire Rope Hoists SWF WRH NOVA BLACKLINE



NOVA BLACKLINE single and double girder trolley, up to 20 t



The BLACKLINE is constructed for the economic lifting of charges. It is safe, reliable and based on a proven technological design. It combines a strong hoist with an attractive price.

High quality, long life and performance are the NOVA BLACKLINE‘s genetic basis. It covers a wide spectrum of load handling with an ultimate load of 20 tons. The BLACKLINE is an uncompromising and robust powerhouse, reduced to the essential.



NOVA BLACKLINE – JUST POWER, SIMPLY SAFE

• Ultimate load from 2 to 20 tons and a lifting height up to 13 meters
• Optimal space and land utilization due to compact headroom and optimum hook dimension
• Minimized attrition of rope by a big drum diameter
• Robust contactor control for hoist motor and trolley motor
• Mechanical overload protection protects crane and building structure
• Plug & play – quick and easy installation and maintenance
• Overheat protection at hoist motor prevents his damage
