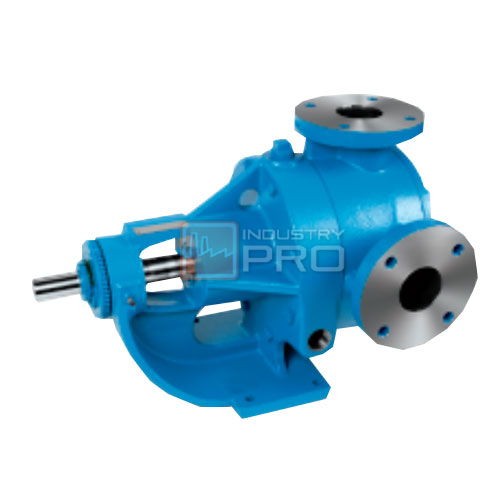

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Heavy Duty Alloy

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Heavy Duty Alloy

FEATURES

  • Jacketed bracket standard on H-LL sizes for heating or cooling. Optional jacketed heads available.
  • Integral thrust bearing standard for heavy duty applications.
  • Integral pressure relief valve standard on sizes G-LL.
  • Motor speed operation on smaller sizes – no reducer required.
  • Alloy wetted materials with cast iron non-wetted bracket for enhanced value.

SPECIFICATIONS

Material of Construction Size Standard Port Nominal Capacity At Maximum Speed Maximum Speed Maximum Pressure
Inches GPM M3/Hr RPM PSI BAR
STAINLESS STEEL F 0.5 1.5 0.3 1,750 200 14
FH 0.75 3 0.7 1,750 200 14
G 1 5 1 1,150 200 14
H 1.5 10 2 1,150 150 10
HL 1.5 20 5 1,150 150 10
K 2 45 10 520 150 10
KK 2 65 15 520 150 10
L 2 90 20 420 150 10
LQ 2.5 90 20 420 150 10
LL 3 110 25 420 150 10
