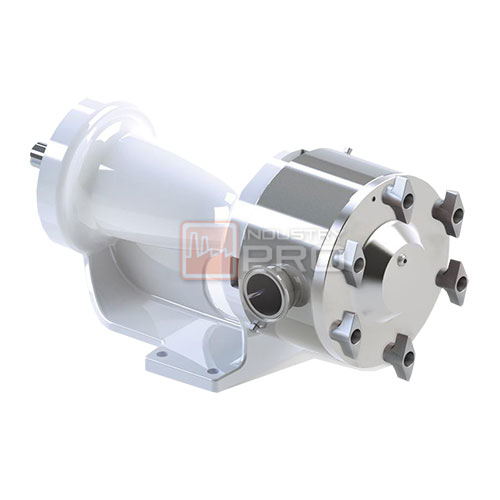

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Hygienic Series

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Hygienic Series

FEATURES

• Drop-in replacement for existing Viking pumps.
• One shaft seal (mechanical or O-ring)
• Fast Clean In Place (CIP), fast Clean Out of Place (COP)
• No shimming, no rotor timing, no oil/grease changing

SPECIFICATIONS

OPTIONS

Seals:

• Single mechanical seal standard.
• Options: double mechanical seal with flush/quench or single or double O-ring seal.

Drives:

• Long-coupled standard.

Heating/Cooling:

• Jacketing option for melting chocolate or other ambient temperature solids prior to startup.

Porting:

• Hygienic clamp ports conforming to ISO 2852 standard. Other hygienic ports and ANSI compatible flange ports optional.
• Standard and optional port sizes listed in specifications of the catalog, page 6.
• Opposite ports standard, 90° ports optional.
