เกียร์ปั๊ม VIKING PUMP รุ่น Internal Motor Speed

Category ปั๊มเฟือง

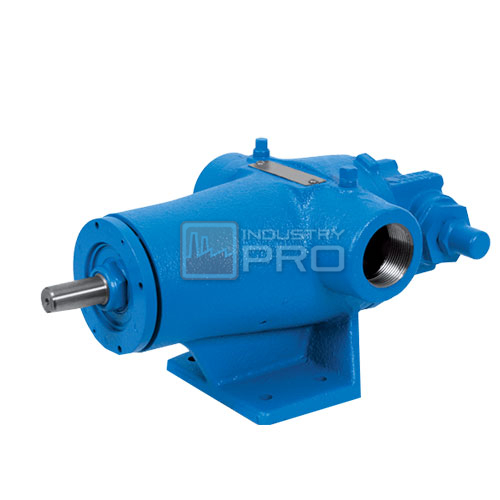

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Motor Speed

Heavy duty antifriction bearing shaft support for higher pressure and extended pump life.
Motor speed operation eliminates speed reduction equipment on thinner liquids.
Pressure lubrication system automatically lubricates the idler bushing, increasing pump life.
Space-saving mounting configurations available to better match your installation needs:
- Foot Mount
- Motor Mount (Close-Coupled NEMA and IEC)
- Vertical Inline Mount

Materials of Construction	Size	NTP Ports	Flange Ports		Nominal Capacity At Maximum Speed (60hz)		Maximum Speed	Maximum Pressure
Materials of Construction	Size	Inches	Class 125 (in)	DIN PN-16 (mm)	GPM	M3/Hr	RPM	PSI	BAR
All Materials	G ①	1	—	—	8	1.8	1,750	250②	17②
	GG	1	—	—	10	2.3	1,750	250②	17②
	H ①	1.5	—	—	15	3.4	1,750	250②	17②
	HJ	1.5	—	—	20	4.5	1,750	250②	17②
	HL	1.5	—	—	30	6.8	1,750	250②	17②
	AS	2.5	—	—	55	12	1,750	250②	17②
	AK	2.5	—	—	85	19	1,750	250②	17②
	AL	3	—	—	115	26	1,750	250②	17②
	KE ①	—	4	100	150	34	1,750	150	10
	KKE①	—	4	100	205	47	1,750	150	10
	LQE①	—	4	100	235	53	1,150	150	10
	LSE①	—	4	100	350	80	1,150	150	10
	Q ①	—	6	150	460	104	750	150	10
	QS ①	—	6	150	580	132	640	150	10
