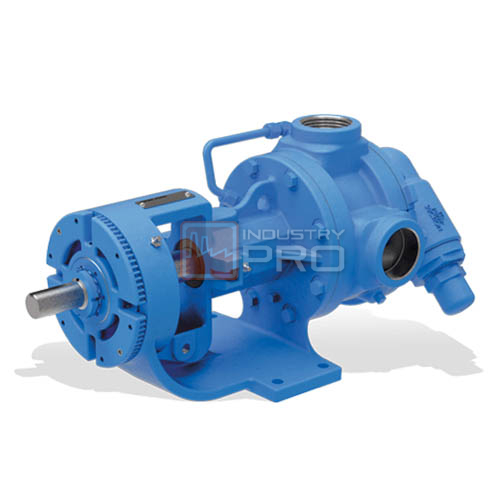

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Abrasive Liquid

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Abrasive Liquid

FEATURES

  • Extended service life provided by:
    • Tungsten carbide components in critical wear areas of pump.
    • Other hardened component options available.
    • Silicon carbide mechanical seal faces.
    • Positive seal flush to keep fresh supply of liquid at seal faces.
    • Behind the rotor seal placement eliminates abrasive wear on shaft bushing.
  • Pin drive mechanical seal increases viscosity range.
  • For abrasive liquids like paints, inks and waste oil.

SPECIFICATIONS

Material of Construction Size Standard Port Nominal Capacity At Maximum Speed Maximum Speed Maximum Pressure
Inches GPM M3/Hr RPM PSI BAR
Cast Iron F 0.5 0.75 0.17 870 100 7
FH 0.5 1.5 0.34 870 100 7
H 1.5 5 1.1 640 150 10
HL 1.5 10 2.3 640 150 10
K 2 25 5.6 280 150 10
KK 2 35 7.9 280 150 10
L 2 50 11.3 230 150 10
LQ 2.5 50 11.3 230 150 10
LL 3 65 14.8 230 150 10
LS 3 75 16 230 150 10
Q 3 110 25 190 125 8.5
QS 4 182 41 190 125 8.5
