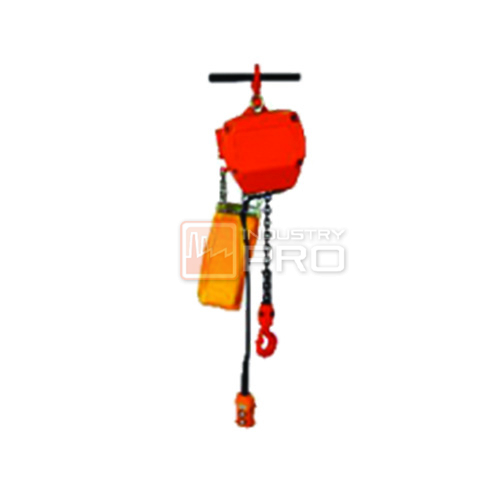

รอกโซ่ไฟฟ้า CHIYEAH รุ่น KIO Series

รอกโซ่ไฟฟ้า CHIYEAH รุ่น KIO Series



FEATURES

  • Load support:Formed by two S50C steel plates for rigidity and durability.
  • Motor brake:When the power is off,the magnetic force from the magnetic genertor generator can promptly produce brake force.The structure is simple and enables longlasting use.
  • Mechanical brake:The mechanical brake device,renowned for its long lifetime,is used in conjunction with the motor brake to ensure operation safety.
  • Shell:The aluminum alloy motor shell is light in weight and excellent in heat emission , which allows the motor to be used continuously for 30 minutes ,With the cop,letrly sealed design,the motor can be used in both a casting and plating plant.
  • Enclosed drum flange prevents ropes becoming trapped between drum and support castings
  • Reversal protction device:No action will take place ehen the power line is incorrectly connected.
  • 48V reduction device:If electrical leakage of switch occurs during operation, this device can prevent accidents from taking place.
  • Limit switch : Such Devicw is provide for both upward and downwaed hoisting to prevent unsmooth and falling chain , and ensure safety.



SPECIFICATIONS

Model Load Chain falls line Wire rope Length of button wire Hoisting speed 50HZ Hoisting speed 60HZ Motor 50HZ Wire Rope Φ mm×m Chain size Net weight Distance between Flanges Gross weight Approx Dimensions A Approx Dimensions C Approx Dimensions D Approx Dimensions E Approx Dimensions F Approx Dimensions G Approx Dimensions H
CHIYEAH KIO-1T 1T 1 3 m 3 m 4.7 5.6 1 (3PHASE)220V-600V 50HZ/60HZ 7.1X21.0 190 mm 58 64 530 630 260 270 350 137 123
CHIYEAH KIO-1S 1T 1 3 m 3 m 6.7 8 1.5 (3PHASE)220V-600V 50HZ/60HZ 7.1X21.0 60 66 530 630 260 270 350 137 123
CHIYEAH KIO-2T 2T 2 3 m 3 m 3.3 4 1.5 (3PHASE)220V-600V 50HZ/60HZ 7.1X21.0 70.5 76.5 530 795 260 270 350 198 62
