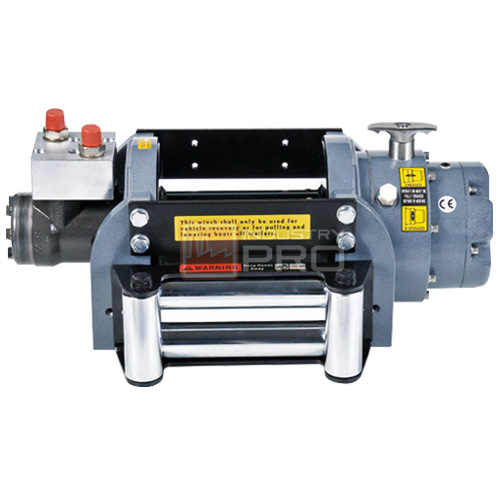

กว้านสลิงไฟฟ้า COME UP Hydraulic Recovery Winch HV Series

กว้านสลิงไฟฟ้า COME UP Hydraulic Recovery Winch HV Series

  • Powered by a PTO/power take off unit driven pump
  • Fast and variable recovery speeds for high work rate
  • Highly efficient and constant operating torque motor
  • 2 stage planetary gear train for greater pulling force
  • Turn clutch by ergonomic T-handle for rapid wire rope payout
  • Drag brake and over center valve providing complete braking
  • EN 14492-1 supported: 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery
  • Meet SAE J706, CE Machinery Directive 2006/42/EC and support EN 14492-1: 2006 Power Driven Winches

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP Hydraulic Recovery Winch HV Series

Specifications COME UP HV-8 COME UP HV-10 COME UP HV-12 COME UP HV-15
Part number PN 680816 (Std. drum)  / PN 681091 (Long drum) PN 682546 (Std. drum)  / PN 683129 (Std. drum – Clutch in left side) PN 684311 (Std. drum)  / PN 685433 (Std. drum – Clutch in left side) PN 686732 (Std. drum)  / PN 687548 (Std. drum – Clutch in left side)
PN 681123 (Std. drum – Clutch in left side)  /  PN 681347 (Long drum – Clutch in left side)
Rated line pull 3,630 kg / 8,000 lb (SAE J706 rating) 4,535 kg / 10,000 lb (SAE J706 rating) 5,440 kg / 12,000 lb (SAE J706 rating) 6,800 kg / 15,000 lb (EN 14492-1 rating & SAE J706 rating)
3,560 kg (EN 14492-1 rating) 4,300 kg (EN 14492-1 rating) 5.100 kg (EN 14492-1 rating)
Line speed (at 1st layer of rope) 15 mpm at 60 l/min (49 fpm at 15.9 g/min) 14 mpm at 60 l/min (46 fpm at 15.9 g/min) 10 mpm at 60 l/min (33 fpm at 15.9 g/min) 9 mpm at 60 l/min (30 fpm at 15.9 g/min)
Operation pressure 150 bar / 2,175 psi 150 bar / 2,175 psi 150 bar / 2,175 psi 150 bar / 2,175 psi
Max oil flow 60 l/min (15.9 g/min) 60 l/min (15.9 g/min) 60 l/min (15.9 g/min) 60 l/min (15.9 g/min)
Hydraulic motor 77.8 cm3/rev (4.7 in3/rev) 97.3 cm3/rev (5.9 in3/rev) 125 cm3/rev (7.6 in3/rev) 156 cm3/rev (9.5 in3/rev)
Gear ratio 2-stage planetary gear 16:1 2-stage planetary gear 16:1  2-stage planetary gear 19.4:1 2-stage planetary gear 19.4:1
Winch construction Aluminum die cast housings with steel drum Aluminum die cast housings with steel drum Aluminum die cast housings with steel drum Aluminum die cast housings with steel drum
Clutch (Freespooling) Rotating ring gear Rotating ring gear Rotating ring gear Rotating ring gear
Brake Spring applied drag brake together with over-center valve supplied Spring applied drag brake together with over-center valve supplied Spring applied drag brake together with over-center valve supplied Spring applied drag brake together with over-center valve supplied
Rotation of winch Wire rope shall be under-wound orientation only Wire rope shall be under-wound orientation only Wire rope shall be under-wound orientation only Wire rope shall be under-wound orientation only
Drum barrel diameter 90 mm (3.5″) 102 mm (4″) 114.3 mm (4.5″) 127 mm (5″)
Drum flange diameter 201.5 mm (7.9”) 201.5 mm (7.9”) 252 mm (9.9”) 252 mm (9.9”)
Distance between flanges 190 mm (7.5″) – Std. drum 253 mm (10″) 255 mm (10″) 255 mm (10″)
Mounting bolts pattern 28.6 x 171.2 mm (9” x 6.7”) ; 311.2 x 114.3 mm (12.3″ x 4.5″) – Std. drum 291.6 x 171.2 mm (11.5” x 6.7”) 303.5 x 114.3 mm (12” x 4.5”) 303.5 x 114.3 mm (12” x 4.5”)
374.2 x 114 mm (14.7” x 4.5”) 368.5 x 171.2 mm (14.5” x 6.7”) 368.5 x 171.2 mm (14.5” x 6.7”)
Wire rope recommended 10 mm x 30 m (3/8″ x 98′) for Std. drum and 40 m (131′) for Long drum, 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 69.8 kN (15,663 lbf) required.for SAE J706 and EN 14492-1 ratings 11 mm x 27 m (7/16″ x 89′), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 84.4 kN (18,939 lbf) required for SAE J706 and EN 14492-1 ratings. 12 mm x 39 m (1/2″ x 128′), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 100.5 kN (22,552 lbf) required for SAE J706 and EN 14492-1 ratings 14 mm x 27 m (9/16″ x 89′) 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 and EN 14492-1 ratings
Winch weight 35.5 kg / 78.1 lb – Std. drum 37 kg / 81.4 lb 71 kg / 156.5 lb 72 kg / 158.7 lb
37.5 kg / 82.7 lb – Long drum
Gross weight 43.3 kg / 95.3 lb  – Std. drum 46.6 kg / 102.5 lb 87 kg / 191.8 lb 88 kg / 194 lb
45.3 kg / 99.9 lb – Long drum
Box dimension, (L x D x H) 615 x 380 x 300 mm (24.2″ x 15″ x 11.8″)  – Std.drum 680 x 380 x 300 mm (26.8″ x 15″ x 11.8″) 735 x 430 x 335 mm (29″ x 16.9″ x 13.2″)  735 x 430 x 335 mm (29″ x 16.9″ x 13.2″)
665 x 370 x 285 mm (26.2″ x 14.6″ x 11.2″) -Long drum
