| Specifications |
COME UP Yak 5 |

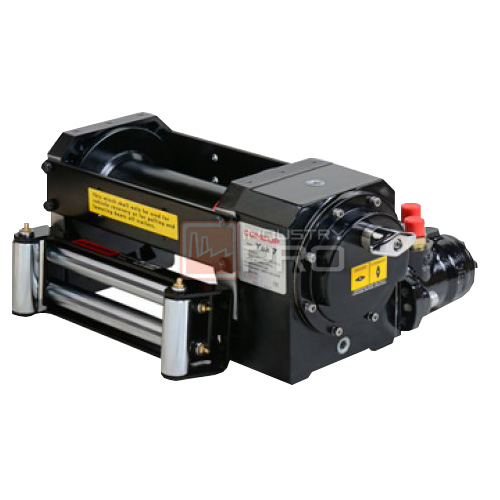

COME UP Yak 7 |
| Part number |
PN 681330 (Std. drum) / PN 681350 (Long drum) |
PN 681260 (Std. drum) / PN 681266 (Long drum) |
| Rated line pull |
2,268 kg / 5,000 lb (SAE J706 rating) |
3,175 kg / 7,000 lb (SAE J706 rating) |
| 2,200 kg (EN 14492-1 rating) |
| Line speed (at 1st layer of rope) |
4.4 mpm at 45 l/min (14.4 fpm at 11.9 g/min) |
5.2 mpm at 40 l/min (17.1 fpm at 10.6 g/min) |
| Operation pressure |
60 bar / 870 psi |
110 bar / 1,595 psi |
| Max oil flow |
45 l/min (11.9 g/min) |
40 l/min (10.6 g/min) |
| Hydraulic motor |
51.7 cm3/rev (3.2 in3/rev) |
48.6 cm3/rev (3.0 in3/rev) |
| Gear ratio |
1-stage planetary gear 50:1 |
1-stage planetary gear 50:1 |
| Winch construction |
Aluminum die cast housings with steel drum |
Aluminum die cast housings with steel drum |
| Clutch (Freespooling) |
Worm gear disengaged |
Worm gear disengaged |
| Brake |
Irreversible worm gear |
Irreversible worm gear |
| Rotation of winch |
Wire rope shall be under-wound orientation only |
Wire rope shall be under-wound orientation only |
| Drum barrel diameter |
72 mm (2.8″) |
90 mm (3.5″) |
| Drum flange diameter |
168 mm (6.6”) |
168 mm (6.6”) |
| Distance between flanges |
160 mm (6.3″) – Std. drum |
160 mm (6.3″) – Std. drum |
| 240 mm (9.5″) – Long drum |
240 mm (9.5″) – Long drum |
| Mounting bolts pattern |
130 x 211 mm (5.1 x 8.3”) – Std. drum |
130 x 291 mm (5.1” x 11.5”) – Long drum |
| 130 x 291 mm (5.1” x 11.5”) – Long drum |
130 x 291 mm (5.1” x 11.5”) – Long drum |
| Wire rope recommended |
*8 mm x 25.5 m for Std. drum and 38.6 m for Long drum, 1,960 N/mm2 grade with a minimum breaking strength of 44.7 kN required for EN 14492-1 rating. |
*10 mm x 10.7 m for Std. drum and 16.2 m for Long drum, 1,960 N/mm2 grade with a minimum breaking strength of 69.8 kN required for EN 14492-1 rating. |
| *5/16″ x 112.5′ for Std. drum and 170.3′ for Long drum, EIPS grade with a minimum breaking strength of 10,030 lbf required for SAE J706 rating |
*3/8″ x 57.4′ for Std. drum and 87.3′ for Long drum, EIPS grade with a minimum breaking strength of 15,663 lbf required for SAE J706 rating |
| Winch weight |
26 kg / 59.3 lb – Std. drum |
29 kg / 63.9 lb – Std. drum |
| 29 kg / 63.9 lb – Long drum |
33 kg / 72.8 lb – Long drum |
| Gross weight |
30 kg / 66.1 lb – Std. drum |
33 kg / 72.8 lb – Std. drum |
| 33 kg / 72.8 lb – Long drum |
37 kg / 81.6 lb – Long drum |
| Box dimension, (L x D x H) |
431 x 386 x 256 mm (17″ x 15.2″ x 10.1″) – Std.drum |
431 x 386 x 256 mm (17″ x 15.2″ x 10.1″) – Std.drum |
| 511 x 386 x 256 mm (20.1″ x 15.2″ x 10.1″) -Long drum |
511 x 386 x 256 mm (20.1″ x 15.2″ x 10.1″) -Long drum |
