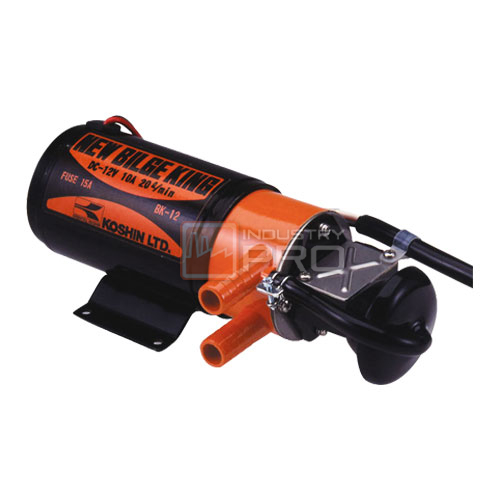

Koshin BK/BK-S Series BK-12,BK-12S,BK-24,BK-24S
| Model | KOSHIN BK-12 | KOSHIN BK-12S | KOSHIN BK-24 | KOSHIN BK-24S |
| Suction / Delivery Dia | 15 mm (½”) | |||
| Max. Delivery Volume | 20 L/min (5 USG/min) | |||
| Voltage | DC 12 V | DC 24 V | ||
| Rated Current | 10:00 AM | 10:00 AM | 5:00 AM | 5:00 AM |
| Suction Head | 1 m (3 ft) | |||
| Suction Time | 2 – 5 sec (20 °C) | |||
| Rating | 80 W | 80 W | 90 W | 90 W |
| Standard Accessories(*Type S : Not Included) | 1 Code with Starting Switch, 1 Strainer, 1 Delivery Nozzle, 1 Delivery Nozzle Nat, 1 Hose (3 m),4 Tapping Screws (5×10), 4 Tapping Screws (4×20), 4 Tapping Screws (4×10),4 Tapping Screws (4×16), 1 Water Proofing Connector (Only S Type) | |||
| 1 Fuse (15 A) | 1 Fuse (15 A) | 1 Fuse (8 A) | 1 Fuse (8 A) | |
| Gross Weight | 18.5 kg (41 lbs) | 11 kg (24 lbs) | 18.5 kg (41 lbs) | 11 kg (24 lbs) |
| Dimensions LxWxH (mm) | 495 × 333 × 351 | 340 × 306 × 265 | 495 × 333 × 351 | 340 × 306 × 265 |
| Packing Unit | 4 | 4 | 4 | 4 |
