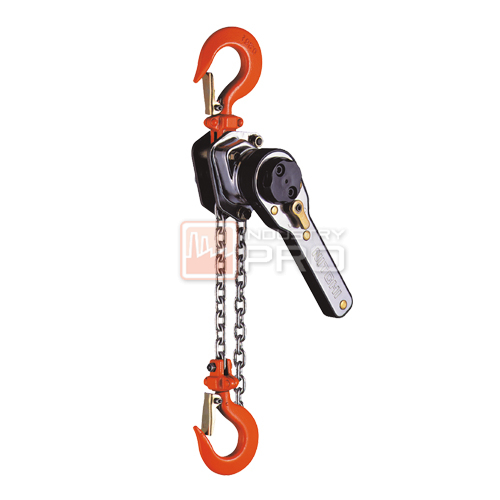

รอกโซ่มือโยก Lever block NICHI RBP1 Series

Capable of accommodating vertical, horizontal, and even diagonal load hoisting, RBP1 Series promises high work efficiency at transportation, construction, and civil engineering sites where speed, flexibility, and safety are the crucial elements.

รอกโซ่มือโยก Lever Hoists NICHI RBP1 Series



Capable of accommodating vertical, horizontal, and even diagonal load hoisting, RBP1 Series promises high work efficiency at transportation, construction, and civil engineering sites where speed, flexibility, and safety are the crucial elements.



FEATURES

  • Compact and lightweight
    This series is made compact and lightweight for easy transportation.
  • Auto lock mechanism
    Renowned for its reliability, the auto lock mechanism automatically activates the brake as soon as the load is engaged for improved convenience and safety.



SPECIFICATIONS

Item no. Rated load (kg) Standard lift (m) Test load (kg) Min. headroom G (mm) Load chain Pulling effort (N) Net weight (kg)
Diameter No. of falls
RBP10025 250 1 380 235 4 1 314 1.9



Item no. External dimensions (mm)
A B D E F1 G n
RBP10025 70 22 46 25 20 235 155

Notes:

  • Specifications are subject to change for improvements without notice.
