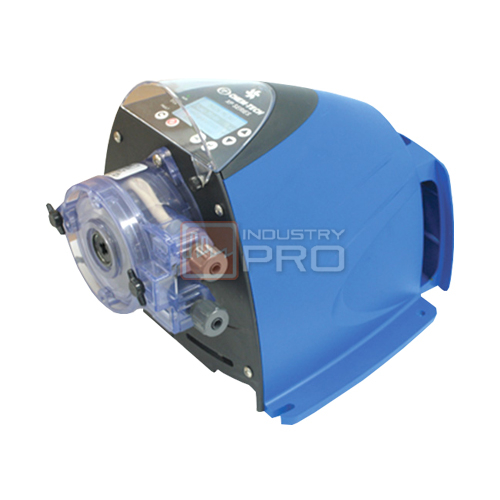

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PULSAFEEDER Chem-Tech XPV Series

he Chem-Tech Series XPV pump combines the best in variable speed peristaltic pump technology with state of the art control electronics, providing unparalleled performance, control, and value. The Series XPV represents the leading edge of microprocessor performance management that allows a variety of choices of input signal types, and onboard timer programs to customize this pump to any application. Of course, this pump is as rugged and reliable as its fixed speed siblings, the XPF and the XPA.

ปั๊มจ่ายสารเคมี PULSAFEEDER Chem-Tech XPV Series

FEATURES

  • Variable speed motor
  • Fully scalable 4-20mA input
  • Hall effect input
  • Contacting head water meter input
  • Flow Totalization – Accurately reports the volume pumped at the touch of a button
  • Cycle Timer – Run automatically at set intervals
  • Daily Timer – Inject chemical based on days of the week
  • LCD Display – Simple and intuitive program selections and clearly displays operating parameters
  • Duplex Head Models – Two pump heads to deliver twice the flow or the rated flow of two different chemicals simultaneously
  • Tubing Materials – Standard norprene tube material in low pressure ratings (extended tube life) / High pressure ratings (meet demanding system requirements) / Fluran tubing (greater chemical resistance: contact technical service for compatibility)

SPECIFICATIONS

Turndown Ratio 100:1
Enclosures NEMA 3R / IP31 (in Horizontal Position)
Tubing Available Norprene Low Pressure, Norprene High Pressure, Fluran
Connection Size Available 0.25″, 0.38″
Power Input 115 VAC – 60 HZ, 230 VAC – 50/60 HZ
Drive Variable Input, Duplex Head
Product Options Duplex Head
15 or 35 Gallon Tank System or 15 Gallon ITS System
Accessories Dampeners
Gauges
KOP Kits
Pre-Engineered Feed Systems
Process Controllers
Tanks
Valves
