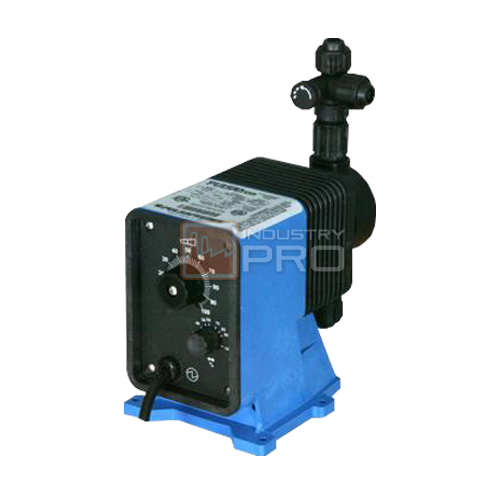

Like the PULSAtron Series C the Series C Plus offers manual control over stroke length and stroke rate as standard with the option to select external pace for automatic control. The primary difference is the pressure rating.
The Series C Plus offers four distinct models with pressure capabilities to 80 psi, and flow capacities to 30 gpd (4.7 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity. Our guided check valves, with their state-of-the-art seat and ball designs, provide precise seating, excellent priming and suction life characteristics. Out timing circuit is highly reliable and, by design, virtually unaffected by temperature, EMI and other electrical disturbances.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).
| Pump Head Materials | GFPPL, PVC, PVDF, 316 SS |
| Fitting Material Available | GFPPL, PVC, PVDF |
| Bleed Valve | Same as fitting and check valve selected (except 316SS) |
| Turndown Ratio | 100:1 |
| Seat O-Rings Available | PTFE, CSPE, Viton |
| Balls Available | Ceramic, PTFE, 316 SS, Alloy C |
| Diaphragms | PTFE-faced CSPE-backed |
| Tubing Available | Clear PVC, White PE, PVDF |
| Power Input | 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph |
| Peak Input Power | 130 Watts, Average Input Power At Max SPM: 50 Watts |
| Average Current Draw | 115 VAC: Amps – 0.6, 230 VAC: Amps – 0.3 |
| Product Options | Optional Control: External pace with auto/manual selection |
| Accessories | Dampeners |
| Gauges | |
| KOP Kits | |
| Pre-Engineered Systems | |
| Process Controllers | |
| Tanks |
