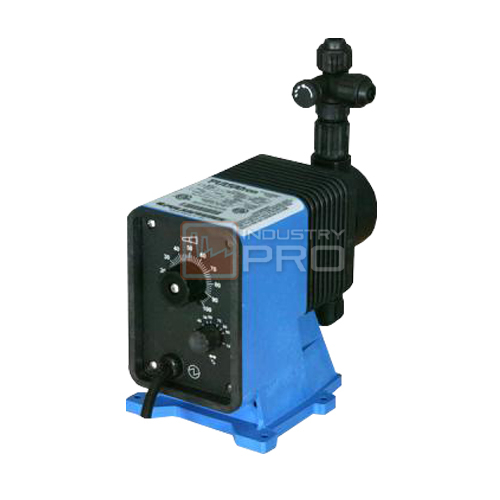

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PULSAFEEDER PULSAtron E Series

The PULSAtron Series E pump features manual control by on-line adjustable stroke rate and stroke length. It has been agency approved for demanding outdoor and indoor applications.

Pressure capabilities to 250 psi (17 bar) @ 5 gpd (0.8 lph) and flow capacities to 44 gpd @ 100 psi (7 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

ปั๊มจ่ายสารเคมี PULSAFEEDER PULSAtron E Series

FEATURES

  • Manual control by on-line adjustable stroke rate and stroke length
  • Highly reliable timing circuit
  • Circuit protection against voltage and current upsets
  • Solenoid protection by thermal overload with auto-reset
  • Water resistant for outdoor and indoor applications
  • Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
  • Few moving parts and wall mountable
  • Safe and easy priming with durable leak-free bleed valve assembly (standard)

SPECIFICATIONS

Pump Head Materials GFPPL, PVC, PVDF, 316 SS
Fitting Material Available GFPPL, PVC, PVDF
Bleed Valve Same as fitting and check valve selected (except 316SS)
Turndown Ratio 100:1
Seat O-Rings Available PTFE, CSPE, Viton
Balls Available Ceramic, PTFE, 316 SS, Alloy C
Diaphragms PTFE-faced CSPE-backed
Tubing Available Clear PVC, White PE, PVDF
Power Input 115 VAC – 50/60 HZ -1 ph, 230 VAC – 50/60 HZ – 1 ph
Peak Input Power 300 Watts, Average Input Power At Max SPM: 130 Watts
Average Current Draw 115 VAC: Amps – 1.0, 230 VAC: Amps – 0.5
Accessories Dampeners
Gauges
KOP Kits
Pre-Engineered Systems
Process Controllers
Tanks
