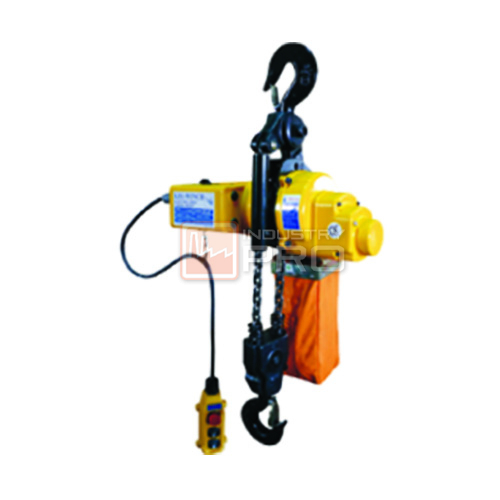

รอกโซ่ไฟฟ้า CHIYEAH รุ่น CL Series

รอกโซ่ไฟฟ้า CHIYEAH รุ่น CL Series



FEATURES

  • The body is shortest distance for chain electric.
  • The special clutch can be cutted when it load over weight.
  • The chain is an alloy steel, it is imported,it is strongest and endureing, the safe coefficient is over 6.
  • The strong brake is accurate and safe, the structure of subject is simple, it is easy to assemble and take down, the rate of breakdown is lowest
  • Hanger can be revolved by 360 degree, and has the safe botton of avoid to dropping
  • Comes complete with 4.5 m pendant control
  • Comes complete with 6 m power lead and industrial plug



SPECIFICATIONS

Model Lifting Capacity (top layer) Lifting Speed m/min Motor Output 220-240V kw x A Braking Methods For gear Brake Lifting Height m Chain Percentage Duty Cycle
CHIYEAH CL-1000 1000 kg 5.5 2.5 x 6 series wound mechanical ratchet 3 7.1 mm 30% ED
CHIYEAH CL-2000 2000 kg 2.5 2.5 x 6 series wound mechanical ratchet 3 7.1 mm 30% ED



WARNING

Winches are not to be used for the moving of persons

WARRANTY

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase



DIMENSIONS (mm) รอกโซ่ไฟฟ้า CHIYEAH รุ่น CL Series



OPTIONAL ACCESSORIES

‧Remote control K-613A

Model STANDARD ACCESSORIES PACKAGE
CHIYEAH CL-1000        – Pendant control K613        – Winch Weight : 26 kg
– Gross Weight : 29 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH CL-2000        – Remote control K-613A        – Winch Weight : 36.5 kg
– Gross Weight : 40 kg
– Box Dimension : 500 x 250 x360 mm
