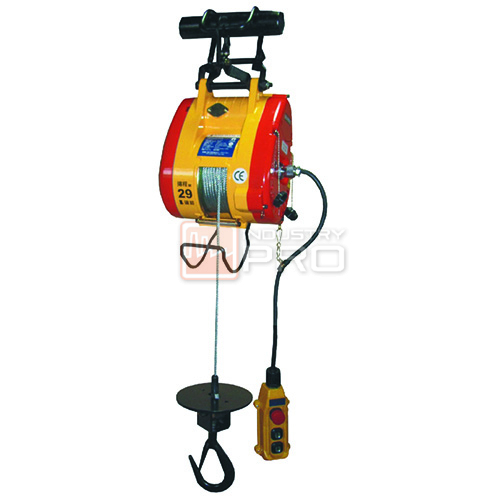

กว้านสลิงไฟฟ้า CHIYEAH รุ่น KIO Series

กว้านสลิงไฟฟ้า CHIYEAH รุ่น KIO Series

FEATURES

  • Lightweight and compact design for easy installation
  • Automatic upper limit switchWhen rope disc touches the limit arm hoisting is automatically stopped
  • Dynamic and mechanical brake Provides instant and safe braking
  • Can operate on standard domestic power supply
  • Sensor arm automatically stops motor if the wire rope is under-wound
  • Come Chiyeh with 7 m power lead and industry plug
  • Come Chiyeh with 6 m pendant control
  • Wire rope with safety hook
  • 360o weight hook with safety latch
  • Motor rating IP44
  • Heavy duty IP65 waterproof switch with emergency stop K613A as an option

SPECIFICATIONS

Model Lifting Capacity (top layer) Lifting Speed m/min Motor Output 110V kw x A Motor Output 220-240V kw x A Braking Methods For gear Brake Lifting Height m Wire Rope Φ mm×m Percentage Duty Cycle
CHIYEAH KIO-180 180 Kg 15~22 1.25 x 12 1.25 x 6 series wound mechanical ratchet 29 5 x 30 25% ED
CHIYEAH KIO-230 230 Kg 9~14 1.3 x 13 1.3 x 6.5 series wound mechanical ratchet 29 5 x 30 25% ED
CHIYEAH KIO-300A 300 Kg 9~14 1.5 x 7 series wound mechanical ratchet 24 5 x 25 25% ED
CHIYEAH KIO-360 360 Kg 13~18 1.8 x 7 series wound mechanical ratchet 43 6x 45 25% ED
CHIYEAH KIO-490 490Kg 8~12 2.0 x 7 series wound mechanical ratchet 28 7x 30 25% ED

WARNING

Winches are not to be used for the moving of persons

WARRANTY

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase

SPECIFICATIONS

Model STANDARD ACCESSORIES PACKAGE
CHIYEAH KIO-180        – 5 mm x 30 m wire rope and hook K-11
– Pendant control K613
       – Winch Weight : 19 kg
– Gross Weight : 25 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH KIO-230        – 5 mm x 30 m wire rope and hook K-11
– Pendant control K613
       – Winch Weight : 19 kg
– Gross Weight : 25 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH KIO-300A        – 5 mm x 25 m wire rope and hook K-11
– Pendant control K613
       – Winch Weight : 19 kg
– Gross Weight : 25 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH KIO-360        – 6 mm x 45 m wire rope and hook K-11
– Pendant control K613
       – Winch Weight : 23kg
– Gross Weight : 30 kg
– Box Dimension : 500 x 250 x360 mm
CHIYEAH KIO-490        – 7 mm x 30 m wire rope and hook K-11
– Pendant control K613
       – Winch Weight : 28kg
– Gross Weight : 35 kg
– Box Dimension : 500 x 250 x360 mm
