Available in capacities from ½ ton through 10 tons with a minimum adjustability of 2 inches. Wheels are equipped with lifetime lubricated ball bearings and compound tread which allow usage on either wide flange or American Standard I beams. Hand Geared Trolleys are equipped with Zinc plated hand chain with a drop equal to the lift of the hoist which is suspended from it. Minus one foot.

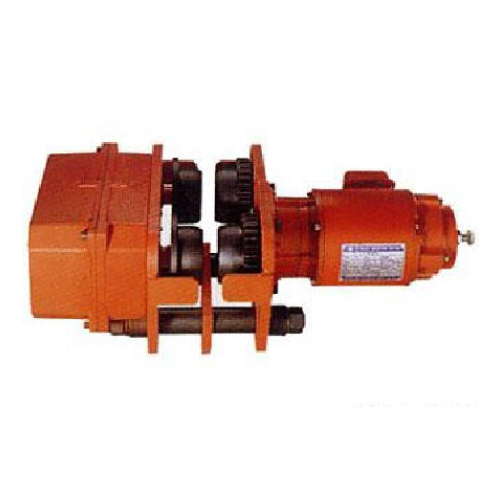

| Motorized Trolley Dimensions/Specifications (Inch) | ||||||||||||
| Capacity (lbs) | model | A | B | C | D | Flange Width (E) | F | G | Speed (FPM) 60Hz | Motor (HP) | Min Radius Curve (ft) | N.W. (lbs) |
| 2200 | MT-100 | 11.7 | 21.3 | 13.6 | 7.8 | 3-5 | 9.7 | 5.9 | 79,52 | 0.3,0.2 | 4.27 | 88 |
| MTD-100 | 79/26 | 0.3/0.1 | ||||||||||
| 6600 | MT-200 | 14.2 | 26.1 | 16.5 | 9.7 | 5-7 | 11.7 | 6.8 | 79,52 | 0.3,0.2 | 5.9 | 143 |
| MTD-200 | 79/26 | 0.3/0.1 | ||||||||||
| 16500 | MT-300 | 19.7 | 29 | 18.4 | 10.7 | 6-8 | 20.9 | 9 | 79,52 | 0.8,0.5 | 9.84 | 342 |
| MTD-300 | 79/26 | 0.8/0.27 | ||||||||||
| 33000 | MT-500 | 27.3 | 34.6 | 23.2 | 11.4 | 7.5 | 20.9 | 13.9 | 79,52 | 0.8,0.5 | – | 772 |
| MTD-500 | 79/26 | 0.8/0.27 | ||||||||||
| 4400 | MT-750 | 12.8 | 22.4 | 14.1 | 8.3 | 4-6 | 10.2 | 22.1 | 52 | 1.2 | 4.92 | 99 |
| MTD-750 | 52/26 | 1.2/0.6 | ||||||||||
| 11000 | MT-1000 | 15.4 | 26.5 | 16.7 | 9.9 | 5-7 | 12.6 | 7.2 | 56 | 2 | 6.56 | 196 |
| MTD-1000 | 56/28 | 43467 | ||||||||||
| 22000 | MT-1500 | 22.1 | 32.4 | 21.7 | 10.7 | 6-8 | 22.3 | 11 | 39 | 2 | 11.48 | 481 |
| MTD-15000 | 39/20 | 43467 | ||||||||||
| 44000 | MT-2000 | 34.8 | 40.4 | 28.4 | 12.1 | 8.0 | 23.8 | 17.3 | 49 | 2.95 | – | 1268 |
| MTD-2000 | 49/16 | 2.95/0.98 | ||||||||||
