ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PROMINENT Beta(R) Solenoid

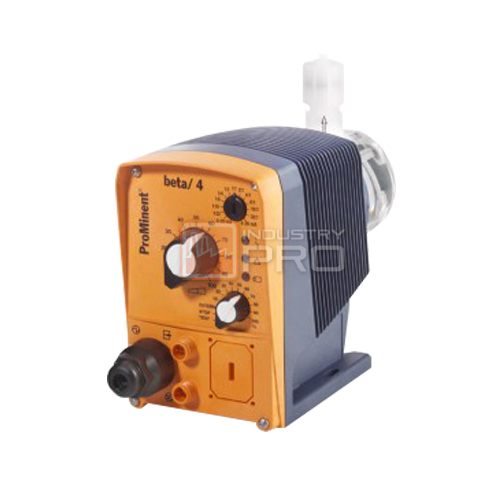

ปั๊มมิเตอร์ริ่งแบบไดอะแฟรม PROMINENT Beta(R) Solenoid

The solenoid metering pump Beta® is equipped with all setting and control functions for modern water treatment and chemical metering As compared to its predecessor model, it features a pulse step down and step up function. This facilitates a more accurate adaptation to external signal transducers. The result is an easier and more precise adjustment of the metering to the actual requirements. Thanks to the use of new technologies, the energy consumption could be reduced by approx. 50 %. The Beta can be easily re-adjusted during operation.

Features

• Capacity range 0.7432 Vh, 25-2 bar
• Continuous stroke length adjustment from 0-100 % (recomm)
• Supplied in PP, Acrylic, PVDF, PTFE, stainless steel
• Patented deaeration for PP, Acrylic and PVDF
• Self-deaerating dosing head type in PP and Acrylic
• HV liquid end for highly viscous media
• Power supply 100 – 230 V as standard
• 10-setting stroke frequency adjustment from 10-100 %
• External control via volt-free contacts with impulse for speed
• Connector for 2-stage level switch
• 3 LED display for operation, warning and fault indication
