Intelligent single chip design, automatic calibration, automatic or manual temperature compensation.
Backlight display, simultaneous display of pH and temperature measurement.
Electrode slope display after calibration

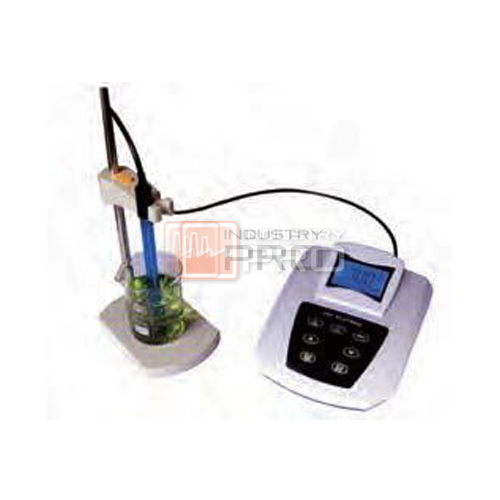

Model | PHS-3D |
Range | pH: 0.00 to 14.00 pH mV: ± 1999 mV Temp: 0 to 100 C |
Resolution | pH: 0.1/0.01 pH mV: ± 1 mV Temp: 0.1°C |
Accuracy | pH: ± 0.01 pH mV ± 0.1% full scale Temp: ± 1˚ c |
Temperature Compensation | 0 to 100° C (manual or automatic) |
Communication Connector | RS232 out-put |
Storage & Record | 25 groups, records the max. and min. value |
Power | DC 9V/300 mA |
Buffer Solution | pH 4.00/7.00/10.01 |
Dimension & Weight | 160 x 190 x 70mm/ 750g |
Catalog Number | Model | Description |
3D-01 | PHS-3D | pH meter + 201-C combination electrode + buffer solution + adapter |
3D-02 | PHS-3D | “pH meter + 201B-F pH/ATC trinal combination electrode + model 600 electrode holder + buffer solution + adapter” |
3D-03 | PHS-3D | “pH meter + 201B-F pH/ATC trinal combination electrode + model 601 stirring type electrode holder + ATC electrode + buffer solution + adapter + pH-link communication software” |
Automatic calibration, ATC Employing only one conductivity electrode(K=1) to measure the full scale. Ability to select range and switch units automatically.
Model | DDS-11C Lab. Conductivity Meter. |
Range | 0 ̴2×105 μS/cm, divided into 4 ranges: 0 ̴199.94 μS, 2.00 ̴1999 μS, 20.0 ̴19.99mS, 20.0-199.9mS |
Accuracy | ± 1.0%FS |
Temperature Comoensation | (0-50° C (manual and automatic) |
Data Storage | 50 Groups |
Power | DC9V/300mA |
Dimension & Weight | 160 x 190 x 70 mm / 750 g |
Meter Kits | 2301-F Plastic Conductivity Electrode (K=1, ATC), 1408 μS/cm Conductivity Standard Solution (50ml). Model 600 Electrode Holder / 9V Power Adapter |
