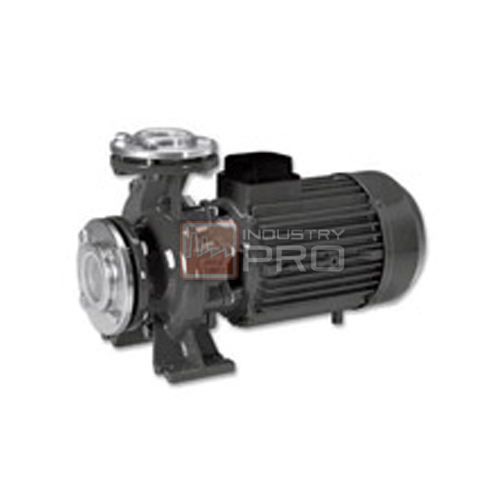

ปั๊มหอยโข่ง MATRA รุ่น CM Series

  • Matra CM Series ปั๊มน้ำหอยโข่งหน้าแปลน ตัว ปั๊มเป็นแบบสแตนเลส แข็งแรงทนทาน เป็นปั้มสูบน้ำที่เหมาะสำหรับงานอุตสาหกรรม และระบบสูบน้ำจ่ายตึกสูง
  • มีจำหน่ายให้เลือกใช้งานหลากหลายรุ่น มีขนาดกำลังมอเตอร์ตั้งแต่ 2 – 50 HP

ปั๊มหอยโข่ง MATRA รุ่น CM Series

SPECIFICATIONS TABEL A1-1

Type P2 nom. P2 nom. P1 max. I Q (m3/h-l/min)
0 4.5 6 7.5 9 12 15 18 21 24 27 30 33 36 39
0 75 100 125 150 200 250 300 350 400 450 500 550 600 650
HP kW kW 3x400v H (m)
MATRA CM 32-160 C (*) 2 1.5 2.3 4 24.7 24.4 24.1 23.6 23 21.5 19.6 17.2 14.1
MATRA CM 32-160 B (*) 3 2.2 2.9 5.2 29 28.5 28 27.3 25.7 23.8 21.4 18.5 14.8
MATRA CM 32-160 A 4 3 4.1 7.1 36.8 36.4 36 35.4 34.2 32.8 31.1 28.8 26 22.3
MATRA CM 35-200 C (*) 5.5 4 5.2 9.4 41 40 39.5 38.9 37.5 36 34.2 32.2 30 27
MATRA CM 32-200 B1 7.5 5.5 6.6 11.3 48 47.5 47.1 46.6 45.5 44.3 42.5 40.7 38.5 35.7 32.5 28.6
MATRA CM 32-200 B 7.5 5.5 8 13.7 52.8 52 51.5 51 50 48.5 46.8 45 42.7 40.1 37 33.3 28.7
MATRA CM 32-200 A1 10 7.5 8.5 14.6 56.5 56 55.6 55.2 54 52.8 51 49.2 47 44.2 41 37.1 33
MATRA CM 32-200 A 10 7.5 9.9 16.5 61 60.5 60.1 59.6 58.5 57.2 55.5 53.7 51.5 49 46.2 42.7 38.5
CM 32-250 C 12.5 9.2 11.9 20.1 70 68.5 68 67 65.5 63.5 61.5 58.7 55 50.5
MATRA CM 32-250 B 15 11 14.4 24.2 82 81 80.5 79.5 78.5 77 75 72.6 70 66.5
MATRA CM 32-250 A1 20 15 16 27.4 91 90 89.9 89 88 86 84 81.5 79 75.5
MATRA CM 32-250 A 20 15 18.1 30.1 93 92.5 92 91.5 90.5 89.5 88 55.7 83.5 80
MATRA CM 40-125 C (*) 2 1.5 2.3 4 17.4 17.6 17.5 17.3 16.9 16.4 15.8 15.1 14.2 13.3
MATRA CM 40-125 B (*) 3 2.2 2.9 5.2 20.7 21.3 21.2 21 20.6 20.1 19.4 18.7 17.9 17
MATRA CM 40-125 A 4 3 4.1 7.1 25.2 25.8 25.8 25.6 25.4 24.9 24.4 23.7 22.9 22 21.1
MATRA CM 40-160 B (*) 4 3 4.4 7.4 30 30.1 30 29.6 29 28.2 27.1 25.9 24.4 22.8 21
MATRA CM 40-160 A (*) 5.5 4 5.7 9.9 35.4 35.6 35.5 35.3 35 34.2 33.2 32 30.6 29 27.3 25.4
MATRA CM 40-200 B 7.5 5.5 7.8 13.2 46.7 47 46.8 46.4 45.6 44.5 43.2 41.6 39.9 37.9 35.8 33.4
MATRA CM 40-200 A 10 7.5 10.2 16.8 56.4 57.8 58 57.9 57.6 46.9 56 54.7 53 51.1 48.9 46.5
MATRA CM 40-250 C 12.5 9.2 12.6 21 65 64.3 63.9 63.3 62.6 61.5 60.2 58.8 56.9 54.5 51.6 48.5
MATRA CM 40-250 B 15 11 14.4 24.2 75.5 74.6 74.2 73.5 72.7 71.7 70.4 69 67.2 65 62.5 59.5
MATRA CM 40-250 A1 20 15 17.5 29.5 85 84 83.7 82.9 82.1 80.8 79.5 77.8 75.9 73.8 71.3 68.4
MATRA CM 40-250 A 20 15 19 32 91.5 90.4 89.9 89.3 88.5 87.5 86.6 85.5 84 82.5 80.5 78.5
MATRA CM 50-125 B (*) 4 3 4.4 7.4 19.9 20.2 20.2 20.1 20 19.8 19.3 19.1 18.7 18.3 17.8
MATRA CM 50-125 A (*) 5.5 4 5.7 9.9 24.5 25 24.9 24.8 24.6 24.4 24.2 23.8 23.5 23.1
MATRA CM 50-160 B1 7.5 5.5 6.2 10.7 29.3 30.3 30.2 30 29.6 29 28.4 27.7
MATRA CM 50-160 B 7.5 5.5 6.7 11.6 31.1 32.1 32 31.7 31.4 31 30.4 29.7
MATRA CM 50-160 A1 10 7.5 8.3 14.1 34.3 35.4 35.3 35 34.7 34.3 33.8 33.2
MATRA CM 50-160 A 10 7.5 9.4 15.8 36.7 37.9 37.8 37.7 37.4 37.1 36.6 36.1
MATRA CM 50-200 C 12.5 9.2 10.8 18.5 46 45.6 45.1 44.5 43.7 42.9 41.8
MATRA CM 50-200 B 15 11 12.4 21 50.8 51 50.5 50 49.3 48.5 47.7
MATRA CM 50-200 A1 20 15 14.5 25.4 57 57.3 57.1 56.7 56.2 55.6 54.8
MATRA CM 50-200 A 20 15 14.4 27 58 58.3 58 57.5 57 56.4 55.7
MATRA CM 50-250 C 20 15 20 32.5 71.5 70.8 70.3 69.7 69 68.3
MATRA CM 50-250 B 25 18.5 23 41.5 78 78 77.4 76.8 76.1 75.3
MATRA CM 50-250 A 30 22 28.5 51.5 90 89.5 88.8 88.3 87.7 86.9
MATRA CM 65-125 B1 7.5 5.5 6.4 11 19.4 20.4 20.4 20.3 20.2
MATRA CM 65-125 B 7.5 5.5 7.2 12.6 20.9 22 22 21.9 21.8
MATRA CM 65-125 A1 10 7.5 8.1 14 23 24.1 24.1 24 23.9
MATRA CM 65-125 A 10 7.5 9.5 16.3 25.4 26.4 26.4 26.4 26.3
MATRA CM 65-160 C 12.5 9.2 11.7 19.5 29.8
MATRA CM 65-160 B 15 11 13 22.5 33
MATRA CM 65-160 A1 20 15 15.8 27.6 37.1
MATRA CM 65-160 A 20 15 18 30 39.2
MATRA CM 65-200 C1 20 15 17.4 29.2 39.7
MATRA CM 65-200 C 20 15 20 32.5 42.3
MATRA CM 65-200 B 25 18.5 23 41.5 46.8
MATRA CM 65-200 A 30 22 28.5 51.5 54
MATRA CM 65-250 B 40 30 37.8 63.5 81
MATRA CM 65-250 A 50 37 45 74.5 90
MATRA CM 80-160 E 12.5 9.2 9.9 17.2 21.4
MATRA CM 80-160 D 15 11 12.7 22.1 25.4
MATRA CM 80-160 C1 20 15 14.8 25.5 28.5
MATRA CM 80-160 C 20 15 15.9 27.4 29.7
MATRA CM 80-160 B 25 18.5 20.1 34.8 34
MATRA CM 80-160 A 30 22.5 23.7 39.8 38.8
MATRA CM 80-200 B 40 30 37.8 63.5 49
MATRA CM 80-200 A 50 37 45 74.5 58
* Single phase available



SPECIFICATIONS TABEL A1-2

Type Q (m3/h-l/min)
42 48 54 60 66 72 78 84 96 108 120 132 144 156 168 180 195 210 225 240
700 800 900 1000 1100 1200 1300 1400 1600 1800 2000 2200 2400 2600 2800 3000 3250 3500 3750 4000
H (m)
MATRA CM 32-160 C (*)
MATRA CM 32-160 B (*)
MATRA CM 32-160 A
MATRA CM 35-200 C (*)
MATRA CM 32-200 B1
MATRA CM 32-200 B
MATRA CM 32-200 A1
MATRA CM 32-200 A
MATRA CM 32-250 C
MATRA CM 32-250 B
MATRA CM 32-250 A1
MATRA CM 32-250 A
MATRA CM 40-125 C (*)
MATRA CM 40-125 B (*)
MATRA CM 40-125 A
MATRA CM 40-160 B (*)
MATRA CM 40-160 A (*)
MATRA CM 40-200 B
MATRA CM 40-200 A 43.9
MATRA CM 40-250 C 45.5
MATRA CM 40-250 B 56
MATRA CM 40-250 A1 65.8
MATRA CM 40-250 A 76
MATRA CM 50-125 B (*) 17.4 16.4 15.3 14 12.7 11.2
MATRA CM 50-125 A (*) 22.7 21.8 20.8 19.6 18.1 16.5
MATRA CM 50-160 B1 26.9 25.2 23.2 21 18.7 16.1 13.2
MATRA CM 50-160 B 28.9 27.3 25.3 23.1 20.7 18 15.2
MATRA CM 50-160 A1 32.4 30.7 28.7 26.5 24.3 21.8 19
MATRA CM 50-160 A 35.4 33.9 32.1 30 27.8 25.3 22.6
MATRA CM 50-200 C 40.8 38.5 35.9 33 29 24.5
MATRA CM 50-200 B 46.8 44.7 42.2 39.5 35.9 32
MATRA CM 50-200 A1 54.1 52.2 50.2 47.5 44 40
MATRA CM 50-200 A 55 53.2 51.3 49 46.3 42.8 38.8
MATRA CM 50-250 C 67.6 66 64 61.5 58.6 55 50.5
MATRA CM 50-250 B 74.5 72.8 70.6 68.2 65.5 62.2 58.3
MATRA CM 50-250 A 86.1 84.5 82.7 80.5 78 75.2 71.2
MATRA CM 65-125 B1 20.1 19.8 19.4 19 18.5 17.9 17.2 16.5 15 13.3 11.1
MATRA CM 65-125 B 21.7 21.4 21 20.6 20.1 19.6 19 18.3 16.6 14.7 12.6
MATRA CM 65-125 A1 23.8 23.6 23.3 23 22.7 22.3 21.8 21.2 19.7 17.8 15.7
MATRA CM 65-125 A 26.3 26.1 25.9 25.6 25.3 24.9 24.5 24 22.7 21 18.9 16.5
MATRA CM 65-160 C 31.2 31.1 30.8 30.5 30.1 29.6 29 28.3 26.6 24.6 22.1 19.3 16
MATRA CM 65-160 B 34.6 34.4 34.2 34 33.7 33.3 32.8 32.1 30.6 28.8 26.7 24.1 21.1
MATRA CM 65-160 A1 38.5 38.3 38.1 37.8 37.5 37.1 36.7 36.1 34.6 32.8 30.7 28.4 25.7
MATRA CM 65-160 A 40.6 40.6 40.4 40.2 40 39.7 39.4 38.9 37.7 36.2 34.3 32.2 29.8
MATRA CM 65-200 C1 41.5 41.4 41 40.5 39.9 39 36.8 34.2 31.1 27.8
MATRA CM 65-200 C 44.8 44.5 44.1 43.7 43 42.3 40.5 38 35.3 32
MATRA CM 65-200 B 49.5 49.3 49 48.5 48 47.3 45.5 43.5 41 38
MATRACM 65-200 A 56.7 56.5 56.2 55.7 55.2 54.7 53.5 51.6 49.6 47.1 44
CM 65-250 B 79.5 78.5 77.3 76 74.5 73 69.3 65 60 54.5 48.5
CM 65-250 A 89.5 88.5 87.5 86.5 85.5 84 80.5 76.5 72 66.5 60.5 54
MATRACM 80-160 E 22.4 22.1 21.6 21.2 20.2 19.2 18 16.8 15.4 13.7 12
MATRA CM 80-160 D 26.4 26.1 25.7 25.3 24.4 23.6 22.5 21.3 20 18.5 16.9 15.1
MATRA CM 80-160 C1 29.5 29.3 29 28.6 27.8 26.9 25.7 24.6 23.3 21.7 19.9 17.9 15.2
MATRA CM 80-160 C 30.7 30.5 30.3 29.9 29.2 28.1 27.1 26 24.7 23.1 21.5 19.7 17.2
MATRA CM 80-160 B 35 35 34.8 34.63 34 33.3 32.5 21.6 30.5 29.2 27.8 26 2.36 21
MATRA CM 80-160 A 39.8 39.7 39.6 9.4 38.9 38.2 37.5 36.7 35.7 34.5 33.2 31.6 29.4 26.8 23.5
MATRA CM 80-200 B 50.8 50.6 50.3 49.8 49.3 48.6 47.7 46.7 45.5 43.8 41.5 38.5
MATRA CM 80-200 A 59.6 59.2 58.6 58 57.3 56.4 55.5 54.3 52.7 50.8 48.5 46.1
* Single phase available
