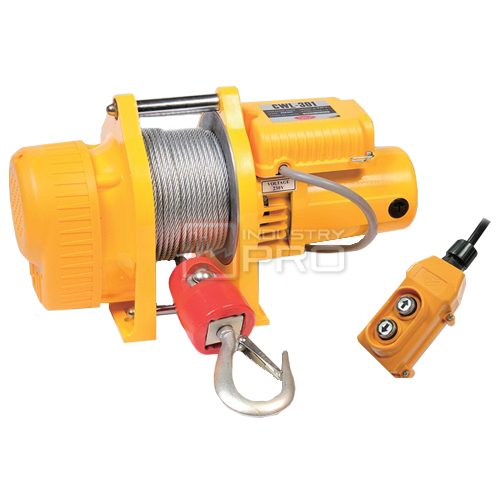

| Specifications | COME UP CWL-80 | COME UP CWL-200 | COME UP CWL-301 |
| Lifting capacity | 80 kg at wire rope top layer | 200 kg at wire rope top layer | 300 kg at wire rope top layer |
| Lifting speed | 16 – 25 m/min | 11 – 16 m/min | 16 – 25 m/min |
| Motor rating IP44 | 1 phase, 110V: 0.3 kw x 6A series wound | 1 phase, 110V: 1.2 kw x 12 A series wound | 1 phase, 220-240V: 2.3 kw x 11 A series wound |
| 1 phase, 220-240V: 0.3 kw x 3A series wound | 1 phase, 220-240V: 1.5 kw x 7.5 A series wound | ||
| Gear ratio | 56:1 | 240:1 | 110:1 |
| Maximum lifting height | 23 m | 45 m | 29 mm |
| Braking methods | for motor: Electromagnetic | for motor: Electromagnetic | for motor: Electromagnetic |
| for gear: Single mechanical ratchet | for gear: Double mechanical ratchets | for gear: Double mechanical ratchets | |
| Wire rope | 4 mm x 24 m | 5 mm x 46 m | 6 mm x 30 m |
| Drum length | 46 mm | 97 mm | 97 mm |
| Drum dia. | 70 mm | 95 mm | 95 mm |
| Drum flange dia. | 158 mm | 190 mm | 190 mm |
| Mounting bolts pattern | 120 mm x 90 mm ; 125 mm x 135 mm | 142 mm x 94 mm ; 152 mm x 135 mm | 142 mm x 94 mm ; 152 mm x 135 mm |
| Net weight, kg (standard version) | 16 kg | 30 kg | 38 kg |
| Gross weight | 18 kg | 32 kg | 40 kg |
| Body dimension, (L x D x H) | 344 x 200 x 210 mm | 413 x 210 x 270 mm | 501 x 210 x 270 mm |
| Box dimension, (L x D x H) | 376 x 330 x 240 mm | 515 x 395 x 350 mm | 630 x 395 x 350 mm |
