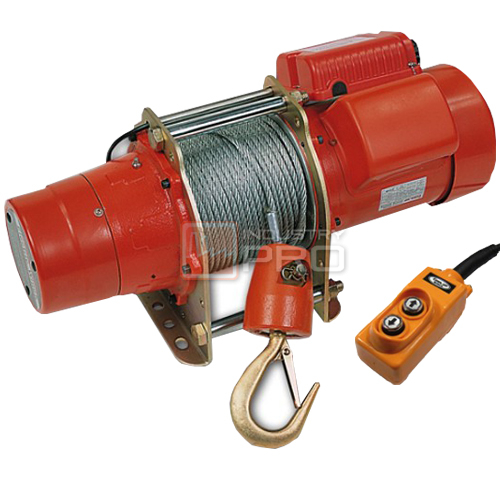

กว้านสลิงไฟฟ้า COME UP รุ่น CWG Series

กว้านสลิงไฟฟ้า AC WINCH Electric Winch CWG Series

  • Lightweight and compact design is ideal for easy installation.
  • Electromagnetic spring-applied failsafe brake.
  • Planetary gears for maximum mechanical efficiency.
  • Cast steel foot mountings.
  • Heavy duty high efficiency ball bearings on al running surfaces
  • Enclosed drum flanges to prevent rope becoming trapped between drum and support castings
  • 24 VAC low voltage control comes as standard
  • Rated capacity limiter limits driving power of motor to prevent overloading of the winch

SPECIFICATIONS กว้านสลิงไฟฟ้า COME UP รุ่น CWG Series

Specifications COME UP CWG-500TH COME UPCP-750T COME UPCWG-10077 COME UPCWG-10151 COME UPCWG-30075 COME UPCWG-30151
Lifting capacity 500 kg at wire rope top layer 750 kg at wire rope top layer 300 kg at wire rope top layer 400 kg at wire rope top layer 300 kg at wire rope top layer 500 kg at wire rope top layer
Lifting speed 19 – 34 m/min 10 – 15 m/min 12 – 19 m/min 12 – 18 m/min 10 – 15 m/min 12 – 18 m/min
Power source 3 phase, 380-440V 3 phase, 380-440V 1 phase, 110V, 220-240V 1 phase, 220-240V 3 phase, 380-440V 3 phase, 380-440V
Motor rating IP44 3.7 kw x 2 poles induction brake motor 2.2 kw x 4 poles induction brake motor 1.5 kw x 4 poles induction brake motor 1.5 kw x 4 poles induction brake motor 0.75 kw x 4 poles induction brake motor 1.5 kw x 4 poles induction brake motor
Gear ratio 58:1 41:1 57:1  43:1 57:1
Maximum lifting height 127 m 58 m 58 m 58 m  29 m 58 m
Braking methods Electromagnetic spring-applied failsafe brake Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Wire rope 8 mm x 130 m, 6 x 19, with 2,970 breaking strength 9 mm x 60 m 6 mm x 60 m  9 mm x 60 m 6 mm x 30 m 9 mm x 60 m
Drum length 300 mm 240 mm 150 mm 240 mm 110 mm 240 mm
Drum dia. 114.3 mm 114 mm 102 mm 140 mm 94 mm 140 mm
Drum flange dia. 240 mm 240 mm 180 mm 280 mm 154 mm 280 mm
Mounting bolts pattern 460 mm x 300 mm 300 mm x 400 mm 197 mm x 156 mm 400 mm x 325 mm 142 mm x 142 mm 400 mm x 325 mm
Net weight, kg (standard version) 155 kg 135 kg 42 kg 120 kg 32 kg 120 kg
