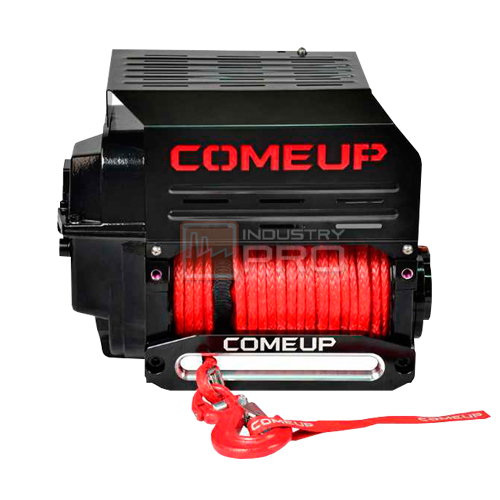

กว้านสลิงติดรถยนต์ COME UP Blazer

กว้านสลิงติดรถยนต์ AUTOMOTIVE WINCH COME UP Blazer

  • Dual motors and dual sealed contactors offer ultimate performance, speed and power in the worlds toughest winch challenge competitions
  • 7.0 hp series wound motors with thermal protection switch.
  • 3 stage spur gear train and upright housing are extreme rugged.
  • Fastest retrieval speed of 50 meter per minute.
  • Ratchet brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Air free-spooling for rapid and easy rope payout
  • Submersible sealed contactor
  • 63.5 mm diameter x 290 mm long drum is suitable for synthetic rope of 11 mm x 46 m
  • Water-proof remote control with thermometric LED indicator alerts when motor overheating.
  • Hawse fairlead supplied for recommended synthetic rope

SPECIFICATIONS กว้านสลิงติดรถยนต์ COME UP Blazer

Part number PN 855800
Rated line pull 3,630 kg / 8,000 lb single line
Motor 5,250 w / 7.0 hp 12V series wound x 2 pcs
Gear train 3-stage spur gear train 33.5:1
Clutch (freespooling) Air free-spooling
Brake (outside the drum) Ratchet brake hold full load without slippage
Winch construction Aluminum die cast housings with steel drum
Drum size: 63.5 x 197 x 290 mm (2.5” x 7.8” x 11.4″)
Control Waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
Recommended rope Synthetic rope
Recommended rope size 11 mm x 46 m (7/16” x 151’)
Mounting bolts pattern 330 x 114.3 mm (13” x 4.5”)
Winch weight (including rope) 61 kg / 135 lb
Gross weight 86 kg / 190 lb
Box dimension, (L x D x H) 670 x 390 x 620 mm (26.4″ x 15″ x 24.4″)
