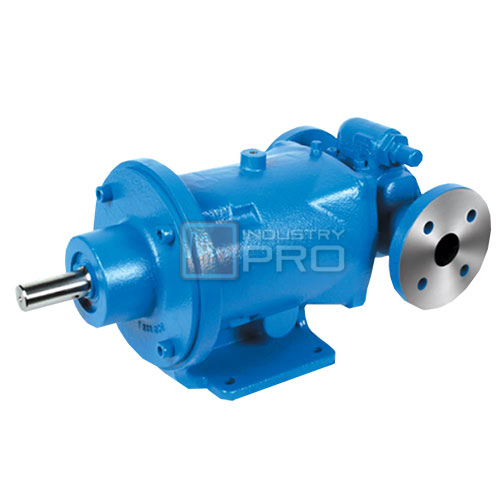

เกียร์ปั๊ม VIKING PUMP รุ่น Internal Mag Drive Motor Speed

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal Mag Drive Motor Speed

FEATURES

  • Series 855 offers IEC or NEMA motor mounts and ANSI or DIN flanges.
  • Casing and canister drains facilitate servicing.
  • Series 893/895/897 offer NPT / BSP or ANSI flange ports and NEMA motor mounts.
  • Long-coupled design available for applications requiring speed reducers.

SPECIFICATIONS

Materials of Construction Size Standard Port Nominal Capacity At Maximum Speed Maximum Speed Maximum Pressure
Inches GPM M3/Hr RPM PSI BAR
Series 855 Cast Iron GS 1 5 1 1,750 200 14
GG 1 10 2 1,750 200 14
HJ 1.5 20 5 1,750 200 14
HL 1.5 30 7 1,750 200 14
AS 2.5 42 10 1,450 150 10.3
AK 2.5 66 15 1,450 150 10.3
AL 3 88 20 1,450 150 10.3
KE 3 94 21 1,150 150 10.3
KKE 3 130 30 1,150 150 10.3
Series 893, 895, 897 Steel, Cast Iron, Stainless Steel GG 1 ① 10 2 1,750 125 8.5
HJ 1 ① 20 5 1,750 125 8.5
HL 1 ① 30 7 1,750 125 8.5
AS 3 ① 35 8 1,150 125 8.5
AK 3 ① 50 11 1,150 125 8.5
AL 3 ① 75 17 1,150 125 8.5

OPTIONS

Opposite (180°), NPT/BSP, Flanged (ANSI or DIN) Foot Mount, IEC Motor Mount (Close-Coupled)
