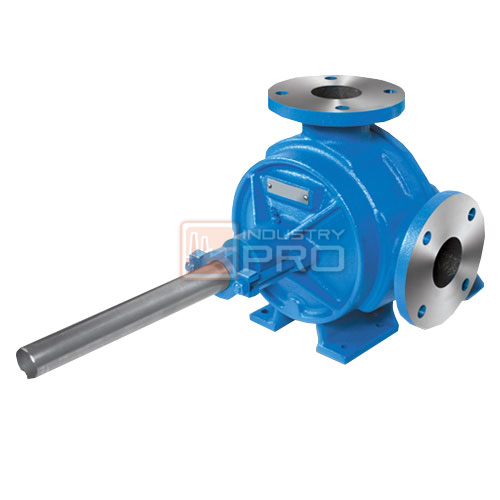

เกียร์ปั๊ม VIKING PUMP รุ่น Internal General Purpose

เกียร์ปั๊ม ยี่ห้อ VIKING PUMP รุ่น Internal General Purpose

FEATURES

  • Simplified rotor retention system, economical for medium duty applications.
  • Back pull-out seals provide access without disturbing the wet end.
  • Long shaft standard for pillow block and belt drive, or reducer drive.

SPECIFICATIONS

Foot-Mounted Size Standard Port Nominal Capacity At Maximum Speed Maximum Speed Maximum Pressure
Inches GPM M3/Hr RPM PSI BAR
C 0.25 0.5 0.11 1,750 250 17
F 0.5 1.5 0.34 1,750 250 17
FH 0.5 3 0.68 1,750 250 17
G 1 5 1.1 1,150 100 7
H 1 10 2.3 1,150 100 7
HL 1.5 20 4.5 1,150 100 7
J 1.25 20 4.5 420 100 7
K 1.5 35 8 420 100 7
KK 2 50 11.4 420 100 7
L 2 90 20.5 420 100 7
LQ 2.5 90 20.5 420 100 7
LL 3 140 32 520 100 7
Q 3 200 46 350 75 5
M 4 280 64 280 75 5
N 5 450 102 280 75 5
